JANTXV1N6492
RoHS
/

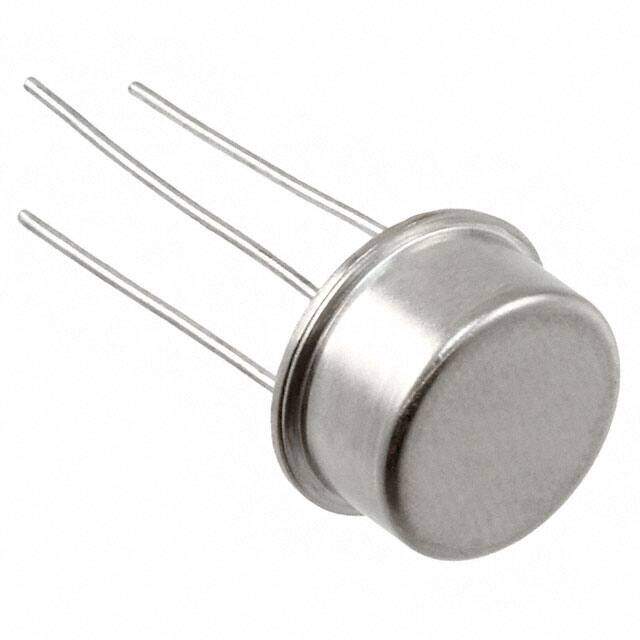

Package TO-205AF Metal Can
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Diode Schottky 45V 1.2A 3-Pin TO-39
PDF
/
Inventory: 9870
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 3 weeks ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-205AF Metal Can
Number of Pins 3
Diode Element Material SILICON
Technical
Packaging Bulk
Published 1997
Series Military, MIL-PRF-19500/567
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 175°C
Min Operating Temperature -65°C
Qualification Status Qualified
Number of Elements 1
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 2mA @ 45V
Voltage - Forward (Vf) (Max) @ If 560mV @ 2A
Forward Current 1.2A
Operating Temperature - Junction -65°C~175°C
Current - Average Rectified (Io) 3.6A
Forward Voltage 680mV
Peak Reverse Current 2mA
Max Repetitive Reverse Voltage (Vrrm) 45V
Capacitance @ Vr, F 450pF @ 5V 1MHz
Peak Non-Repetitive Surge Current 80A
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
