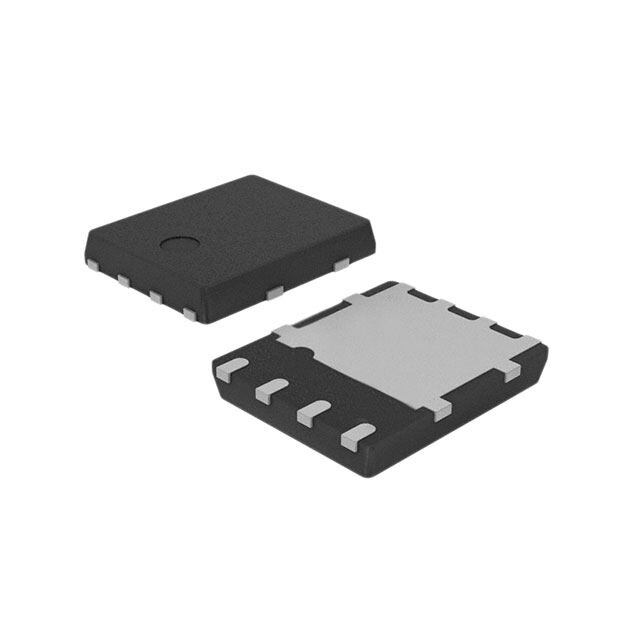

STL130N8F7
RoHS
RoHS compliant
RoHS compliantPackage 8-PowerVDFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
Trans MOSFET N-CH 80V 130A 8-Pin Power Flat T/R
PDF
/
Buying Options
Total Price: USD $2.54
Unit Price: USD $2.5432
≥1 USD $2.5432
≥10 USD $2.134
≥100 USD $1.726208
≥500 USD $1.534421
≥1000 USD $1.313849
Inventory: 1538
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Pulsed Drain Current-Max (IDM) 560A
Drain to Source Breakdown Voltage 80V
Gate to Source Voltage (Vgs) 20V
Continuous Drain Current (ID) 123A
Vgs (Max) ±20V
Drive Voltage (Max Rds On,Min Rds On) 10V
Gate Charge (Qg) (Max) @ Vgs 96nC @ 10V
Current - Continuous Drain (Id) @ 25°C 130A Tc
Input Capacitance (Ciss) (Max) @ Vds 6340pF @ 40V
Vgs(th) (Max) @ Id 4.5V @ 250μA
Rds On (Max) @ Id, Vgs 3.6m Ω @ 13A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Case Connection DRAIN
Power Dissipation 5W
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 135W Tc
Number of Channels 2
Configuration SINGLE WITH BUILT-IN DIODE
Number of Elements 1
JESD-30 Code R-PDSO-F5
Base Part Number STL130
Peak Reflow Temperature (Cel) 260
Terminal Form FLAT
Terminal Position DUAL
Technology MOSFET (Metal Oxide)
Additional Feature ULTRA LOW RESISTANCE
Terminal Finish Matte Tin (Sn) - annealed
Resistance 3.6mOhm
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series DeepGATE?, STripFET? VII
Packaging Tape & Reel (TR)
Operating Temperature -55°C~175°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 8
Package / Case 8-PowerVDFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 8 months ago)
Alternative Model
