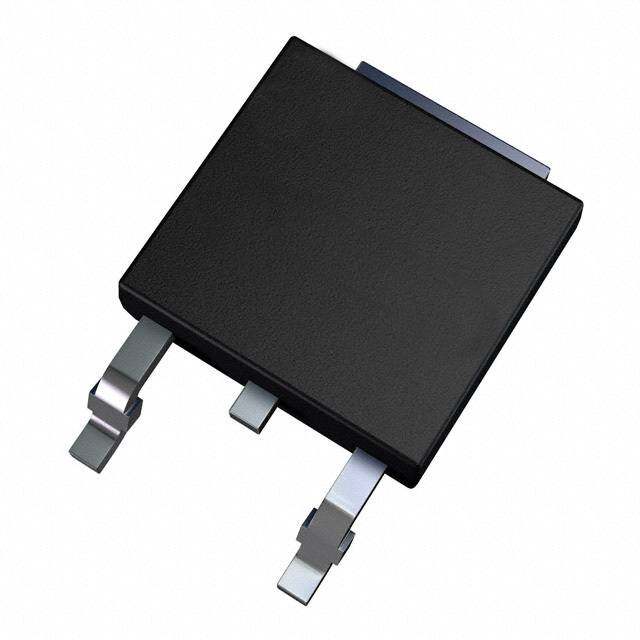

DPG10IM300UC
RoHS
/
Package TO-252
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 300V 10A TO252
PDF
/
Buying Options
Total Price: USD $14.04
Unit Price: USD $14.04385
≥1 USD $14.04385
≥10 USD $11.5235
≥100 USD $11.16345
≥500 USD $10.8034
≥1000 USD $10.44335
Inventory: 1161
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Recovery Time 35 ns
Reverse Voltage 300V
Peak Non-Repetitive Surge Current 140A
Peak Reverse Current 1μA
Reverse Recovery Time 35 ns
Number of Phases 1
Average Rectified Current 10A
Max Reverse Voltage (DC) 300V
Forward Voltage 1.45V
Application FAST SOFT RECOVERY
Max Surge Current 140A
Case Connection CATHODE
Diode Type RECTIFIER DIODE
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code R-PSSO-G2
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE, LOW LEAKAGE CURRENT, SNUBBER DIODE
Min Operating Temperature -55°C
Max Operating Temperature 175°C
Terminal Finish PURE TIN
ECCN Code EAR99
Number of Terminations 2
Pbfree Code yes
JESD-609 Code e3
Packaging Tape and Reel
Physical
Diode Element Material SILICON
Package / Case TO-252
Mount Surface Mount
