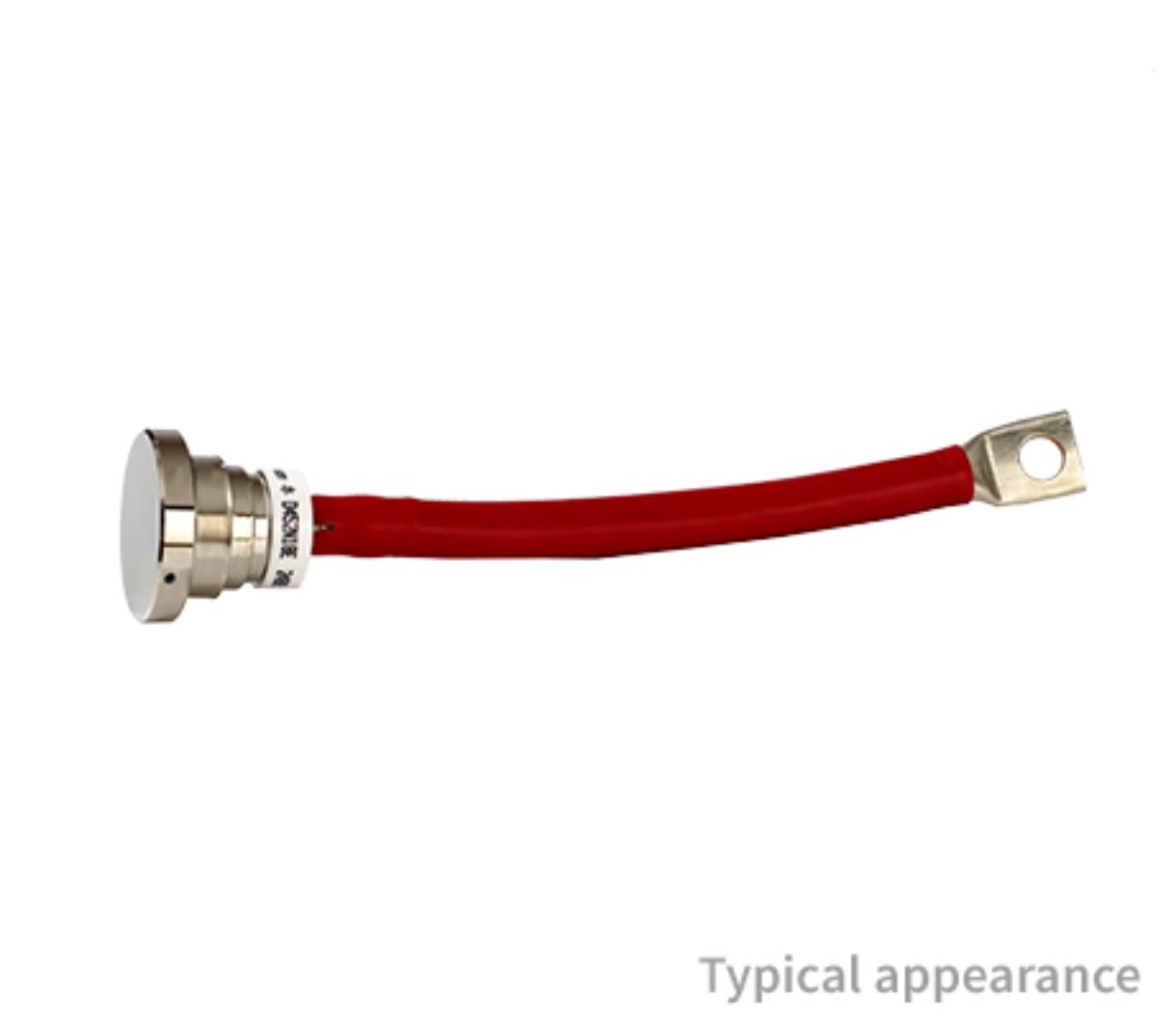

D452N18EVFXPSA1
RoHS
/
Package Nonstandard
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 1.8KV 450A FL54
PDF
/
Inventory: 9293
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Element Configuration Single
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 50mA @ 1800V
Forward Current 450A
Operating Temperature - Junction -40°C~180°C
Halogen Free Halogen Free
Voltage - DC Reverse (Vr) (Max) 1800V
Peak Reverse Current 50mA
Max Repetitive Reverse Voltage (Vrrm) 1.8kV
Peak Non-Repetitive Surge Current 13.5kA
Max Forward Surge Current (Ifsm) 10.8kA
Peak Reflow Temperature (Cel) NOT SPECIFIED
Min Operating Temperature -40°C
Max Operating Temperature 180°C
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Published 1998
Packaging Bulk
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Number of Pins 2
Package / Case Nonstandard
Mounting Type Screw Mount
Mount Screw
