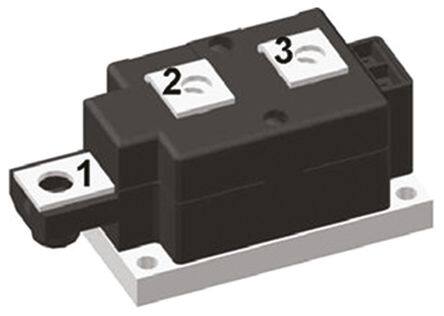

MDMA380P1600KC
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
SCR Modules Standard Rectifier Module
PDF
/
Buying Options
Total Price: USD $137.42
Unit Price: USD $137.4208
≥1 USD $137.4208
≥10 USD $128.71467
Inventory: 63
Minimum: 1
-
+
Technical Details
Physical
Mount Chassis Mount, Panel
Mounting Type Chassis Mount
Package / Case Module
Number of Pins 7
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2014
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Additional Feature LOW LEAKAGE CURRENT, UL RECOGNIZED
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
JESD-30 Code R-XUFM-X3
Number of Elements 2
Power Dissipation-Max 1140W
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 500μA @ 1600V
Voltage - Forward (Vf) (Max) @ If 1.07V @ 300A
Case Connection ISOLATED
Forward Current 380A
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 1600V
Max Reverse Voltage (DC) 1.6kV
Average Rectified Current 380A
Number of Phases 1
Peak Reverse Current 20mA
Max Repetitive Reverse Voltage (Vrrm) 1.6kV
Diode Configuration 1 Pair Series Connection
Dimensions
Height 52mm
Length 115mm
Width 50mm
Compliance
RoHS Status ROHS3 Compliant
