MDD255-16N1
RoHS
RoHS compliant
RoHS compliantPackage Y1-CU
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description

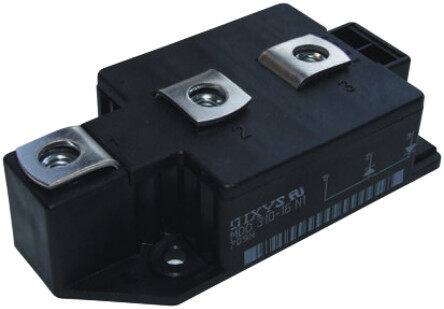

DIODE MODULE 1.6KV 270A Y1-CU
PDF
/
Buying Options
Total Price: USD $130.2
Unit Price: USD $130.2048
≥1 USD $130.2048
≥10 USD $120.52656
Inventory: 23
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Physical
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Package / Case Y1-CU
Number of Pins 3
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2004
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Max Operating Temperature 150°C
Min Operating Temperature -40°C
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number MDD255
Qualification Status Not Qualified
Number of Elements 2
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 30mA @ 1600V
Voltage - Forward (Vf) (Max) @ If 1.4V @ 600A
Case Connection ISOLATED
Forward Current 270A
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 1600V
Forward Voltage 1.4V
Max Reverse Voltage (DC) 1.6kV
Average Rectified Current 270A
Number of Phases 1
Peak Reverse Current 30mA
Max Repetitive Reverse Voltage (Vrrm) 1.6kV
Peak Non-Repetitive Surge Current 10.2kA
Reverse Voltage 1.6kV
Diode Configuration 1 Pair Series Connection
Dimensions
Height 49mm
Length 115mm
Width 50mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
