SDT20A100CTFP
RoHS
RoHS compliant

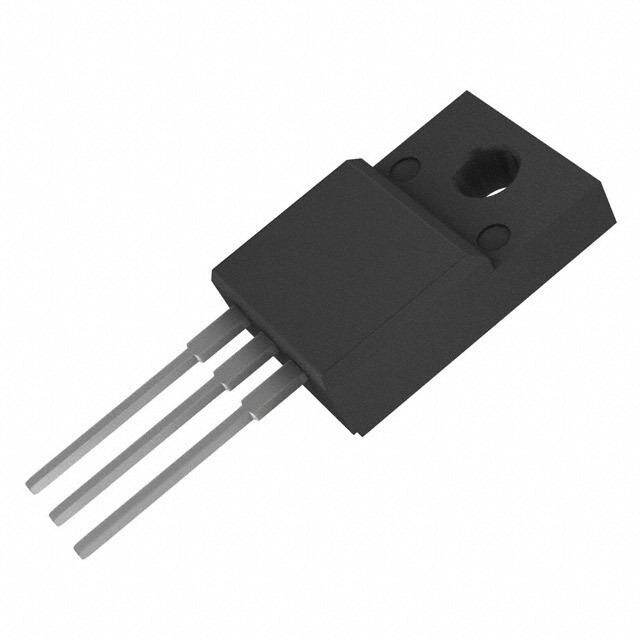

RoHS compliantPackage TO-220-3 Full Pack, Isolated Tab
Category Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Description
DIODE SCHOTTKY 100V 10A ITO220AB
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.668855
≥1 USD $0.668855
≥10 USD $0.630996
≥100 USD $0.595276
≥500 USD $0.56158
≥1000 USD $0.529794
Inventory: 1353
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Reverse Current-Max 100μA
Diode Configuration 1 Pair Common Cathode
Non-rep Pk Forward Current-Max 200A
JEDEC-95 Code TO-220AB
Rep Pk Reverse Voltage-Max 100V
Number of Phases 1
Current - Average Rectified (Io) 10A
Voltage - DC Reverse (Vr) (Max) 100V
Application FAST SOFT RECOVERY
Output Current-Max 10A
Operating Temperature - Junction -55°C~150°C
Voltage - Forward (Vf) (Max) @ If 670mV @ 10A
Current - Reverse Leakage @ Vr 100μA @ 100V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Number of Elements 2
Operating Temperature (Max) 150°C
JESD-30 Code R-PSFM-T3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE, LOW POWER LOSS
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 3
Part Status Active
JESD-609 Code e3
Packaging Tube
Physical
Diode Element Material SILICON
Surface Mount NO
Package / Case TO-220-3 Full Pack, Isolated Tab
Mounting Type Through Hole
Supply Chain
Factory Lead Time 18 Weeks
