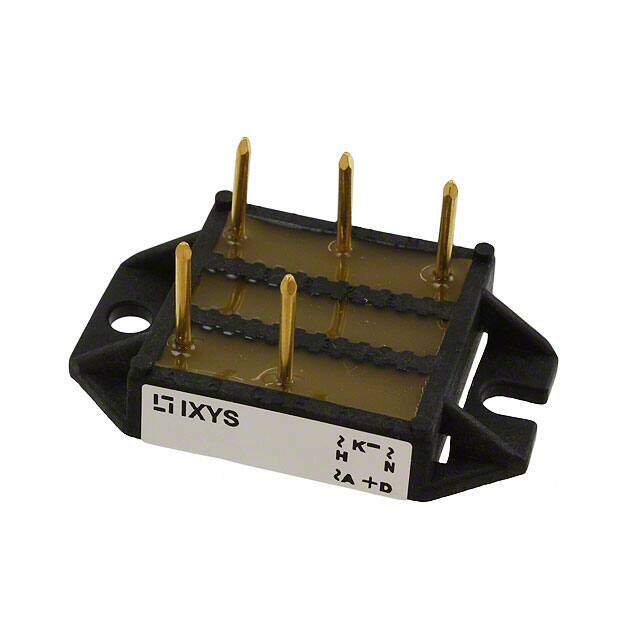

VUE75-06NO7
RoHS
RoHS compliant
RoHS compliantPackage ECO-PAC1
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 3P 600V 86A ECO-PAC1
PDF
/
Buying Options
Total Price: USD $152.53
Unit Price: USD $152.5263
≥1 USD $152.5263
≥10 USD $147.44285
≥100 USD $132.18965
Inventory: 1074
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 30.3mm
Length 47mm
Height 8mm
Technical
Peak Non-Repetitive Surge Current 275A
Max Repetitive Reverse Voltage (Vrrm) 600V
Peak Reverse Current 250μA
Number of Phases 3
Average Rectified Current 86A
Forward Voltage 1.57V
Max Surge Current 250A
Max Reverse Leakage Current 1mA
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.57V @ 30A
Current - Reverse Leakage @ Vr 250μA @ 600V
Diode Type Three Phase
Configuration BRIDGE, 6 ELEMENTS
Number of Elements 1
Qualification Status Not Qualified
Pin Count 5
Base Part Number VUE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature LOW NOISE
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Published 2000
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 5
Package / Case ECO-PAC1
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Supply Chain
Factory Lead Time 16 Weeks
