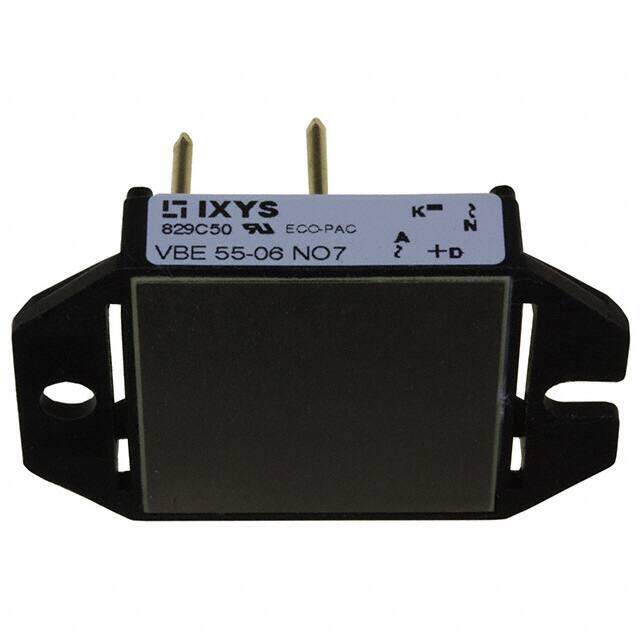

VBE55-06NO7
RoHS
RoHS compliant
RoHS compliantPackage ECO-PAC1
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 1P 600V 68A ECO-PAC1
PDF
/
Buying Options
Total Price: USD $25.29
Unit Price: USD $25.2916
≥1 USD $25.2916
≥10 USD $23.86
≥100 USD $22.50943
Inventory: 70
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 30.3mm
Length 47mm
Height 9mm
Technical
Reverse Recovery Time-Max 0.035μs
Peak Non-Repetitive Surge Current 275A
Max Repetitive Reverse Voltage (Vrrm) 600V
Peak Reverse Current 250μA
Number of Phases 1
Average Rectified Current 68A
Forward Voltage 1.57V
Breakdown Voltage 600V
Max Surge Current 250A
Max Reverse Leakage Current 250μA
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.57V @ 30A
Current - Reverse Leakage @ Vr 250μA @ 600V
Diode Type Single Phase
Number of Elements 1
Qualification Status Not Qualified
Pin Count 4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2000
Packaging Bulk
Operating Temperature -40°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 4
Package / Case ECO-PAC1
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Supply Chain
Factory Lead Time 16 Weeks
