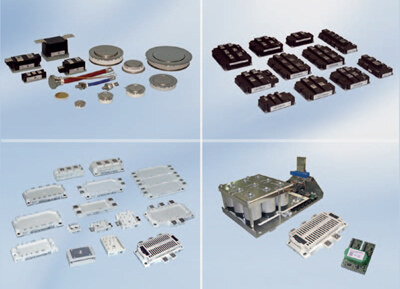

DD104N18K
RoHS
/
Package /
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
Diode Rectifier 1.8KV 104A 3-Pin PB20-1 Tray
PDF
/
Buying Options
Total Price: USD $115.19
Unit Price: USD $115.194642
≥1 USD $115.194642
≥10 USD $108.67419
≥100 USD $102.522822
≥500 USD $96.719641
≥1000 USD $91.244945
Inventory: 1114
Minimum: 1
-
+
Technical Details
Physical
Surface Mount NO
Diode Element Material SILICON
Number of Terminals 3
Technical
ECCN Code EAR99
Additional Feature UL RECOGNIZED
HTS Code 8541.10.00.80
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XUFM-X3
Operating Temperature (Max) 150°C
Operating Temperature (Min) -40°C
Number of Elements 2
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode Type RECTIFIER DIODE
Case Connection ISOLATED
Output Current-Max 104A
Application GENERAL PURPOSE
Number of Phases 1
Rep Pk Reverse Voltage-Max 1800V
Non-rep Pk Forward Current-Max 2500A
Forward Voltage-Max 1.4V
Reverse Current-Max 20000μA
Compliance
RoHS Status RoHS Compliant
