PBPC1003
RoHS
RoHS compliant
RoHS compliantPackage 4-Square, PBPC-8
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description

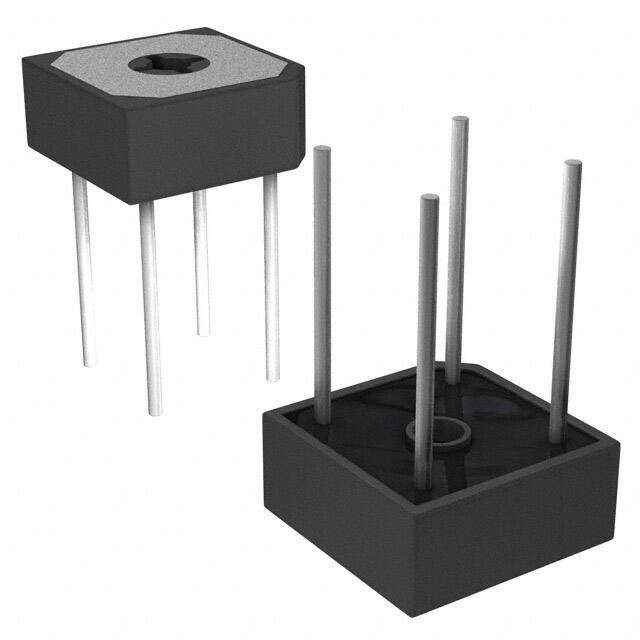

BRIDGE RECT 1P 200V 8A PBPC-8
PDF
/
Inventory: 1671
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 19.56mm
Length 19.56mm
Height 7.6mm
Technical
Peak Non-Repetitive Surge Current 150A
Max Repetitive Reverse Voltage (Vrrm) 200V
Peak Reverse Current 10μA
Number of Phases 1
Forward Voltage 1.1V
Current - Average Rectified (Io) 8A
Output Current-Max 8A
Max Surge Current 150A
Max Reverse Leakage Current 10μA
Forward Current 10A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.1V @ 5A
Current - Reverse Leakage @ Vr 10μA @ 200V
Diode Type Single Phase
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code S-PUFM-W4
Pin Count 4
Time@Peak Reflow Temperature-Max (s) 40
Reach Compliance Code not_compliant
Peak Reflow Temperature (Cel) 260
Terminal Form WIRE
Terminal Position UPPER
Technology Standard
Subcategory Bridge Rectifier Diodes
Additional Feature UL RECOGNIZED
Terminal Finish Tin/Silver (Sn96.5Ag3.5)
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e2
Published 2010
Packaging Bulk
Operating Temperature -65°C~125°C TJ
Physical
Diode Element Material SILICON
Number of Pins 8
Package / Case 4-Square, PBPC-8
Mounting Type Through Hole
Mount Screw, Through Hole
Alternative Model
