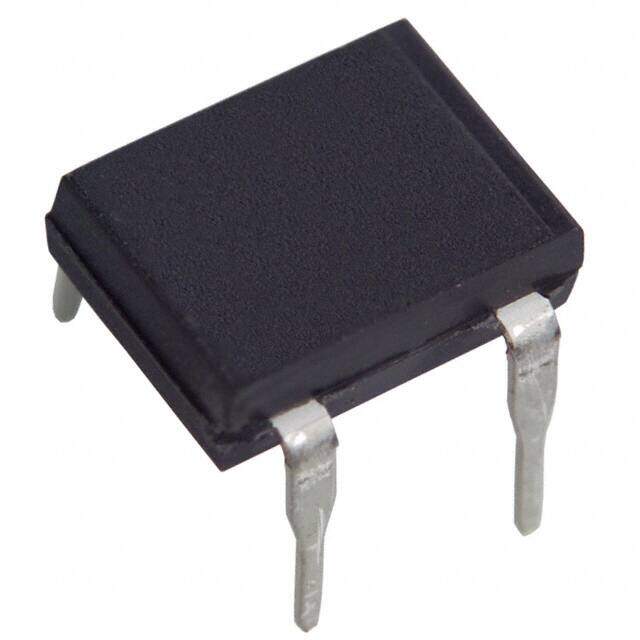

DF08M
RoHS
RoHS compliant
RoHS compliantPackage 4-EDIP (0.300, 7.62mm)
Category Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Description
BRIDGE RECT 1PHASE 800V 1A DFM
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4048
≥1 USD $0.4048
≥10 USD $0.326656
≥100 USD $0.242616
≥500 USD $0.189446
≥1000 USD $0.153982
≥3000 USD $0.137658
Inventory: 1165
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 6.5mm
Length 8.51mm
Height 3.4mm
Technical
Reverse Voltage (DC) 560V
Max Forward Surge Current (Ifsm) 50A
Peak Non-Repetitive Surge Current 50A
Max Repetitive Reverse Voltage (Vrrm) 800V
Peak Reverse Current 10μA
Number of Phases 1
Average Rectified Current 1A
Forward Voltage 1.1V
Max Surge Current 50A
Forward Current 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Output Current 1A
Current - Reverse Leakage @ Vr 10μA @ 800V
Diode Type Single Phase
Element Configuration Single
Number of Elements 1
Pin Count 4
Base Part Number DF08
Time@Peak Reflow Temperature-Max (s) 40
Current Rating 1A
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Technology Standard
Voltage - Rated DC 800V
Subcategory Bridge Rectifier Diodes
Capacitance 25pF
Additional Feature UL RECOGNIZED
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e3
Published 2007
Packaging Tube
Operating Temperature -65°C~150°C TJ
Physical
Diode Element Material SILICON
Weight 416.000902mg
Number of Pins 4
Package / Case 4-EDIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
