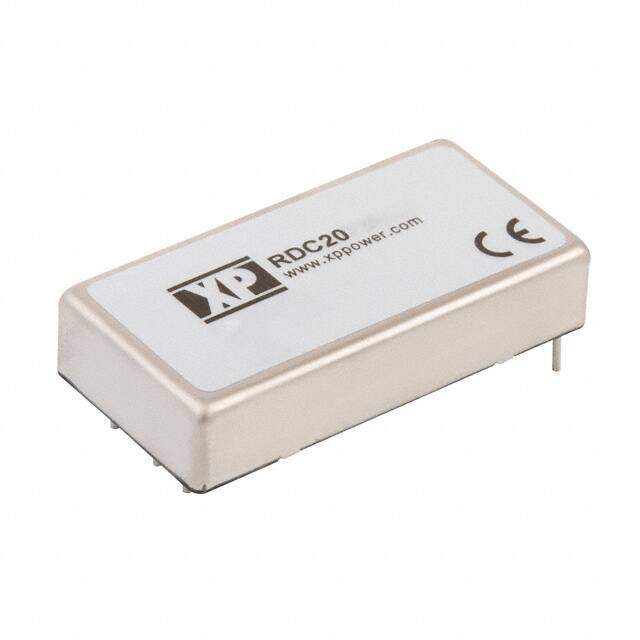

RDC2072D05
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER RDC2072D05 Isolated Board Mount DC/DC Converter, Fixed, Adjustable, 2 Output, 36 V, 140 V, 20 W, 5 V
PDF
/
Inventory: 2507
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 10.668mm
Technical
Min Input Voltage (DC) 36V
Max Input Voltage (DC) 140V
Current - Output 2 2A
Max Output Power 20W
Current - Output 1 2A
Voltage - Output 2 -5V
Control Features Enable, Active High
Output Power 20W
Current - Output (Max) 2A 2A
Voltage - Output 1 5V
Max Output Current 2A
Voltage - Isolation 1.5kV
Efficiency 87%
Number of Outputs 2
Depth 50.8mm
Max Power Dissipation 20W
Applications Railway
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.00W x 0.42 H 50.8mmx25.4mmx10.6mm
Series RDC (20W)
Published 2013
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
