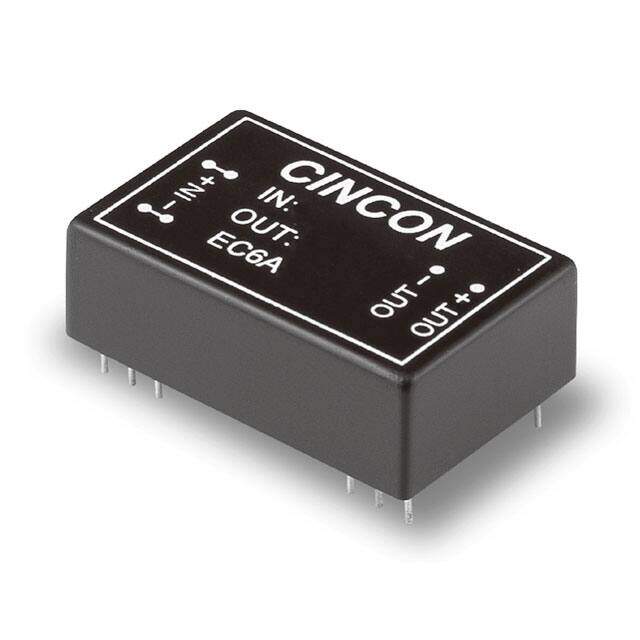

EC6A01
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 14 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 7.5W 9-18VDC 5VDC 1500mA
PDF
/
Buying Options
Total Price: USD $16.12
Unit Price: USD $16.1216
≥1 USD $16.1216
Inventory: 85
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 20.3mm
Technical
Total Power Output-Max 7.5W
Current - Output 1 1.5A
Output Power 8W
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 9V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 18V
Voltage - Isolation 1.5kV
Efficiency 80%
Qualification Status Not Qualified
Number of Outputs 1
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Subcategory Other Analog ICs
Power (Watts) 7.5W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 18
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series EC6A (7.5W)
Operating Temperature -40°C~100°C With Derating
Physical
Surface Mount YES
Package / Case 24-DIP Module, 14 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 8 Weeks
