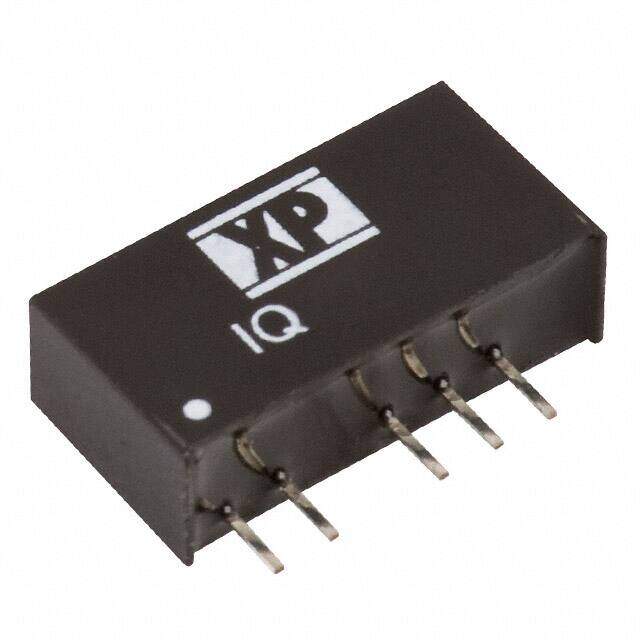

IQ4809SA
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
XP POWER IQ4809SA Isolated Board Mount DC/DC Converter, Semi Regulated, SIP, Fixed, Through Hole, 1 W, 9 V, 111 mA
PDF
/
Buying Options
Total Price: USD $7.19
Unit Price: USD $7.19104
≥1 USD $7.19104
≥10 USD $6.784
≥100 USD $6.4
≥500 USD $6.03774
≥1000 USD $5.69598
≥3000 USD $5.37356
Inventory: 5939
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 9.906mm
Technical
Min Input Voltage (DC) 43.2V
Max Input Voltage (DC) 52.8V
Nominal Output Voltage 9V
Max Output Power 1W
Nominal Input Voltage 48V
Current - Output 1 111mA
Output Power 1W
Output Current 111mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Max Output Current 111mA
Output Voltage 9V
Voltage - Input (Max) 52.8V
Voltage - Isolation 1kV
Efficiency 80%
Number of Outputs 1
JESD-30 Code R-PSMA-T6
Depth 19.5mm
Terminal Pitch 2.5mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Power Rating 1W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.77Lx0.24W x 0.39 H 19.5mmx6.0mmx10.0mm
Series IQ (1W)
Published 2013
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 7-SIP Module, 6 Leads
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 10 Weeks
