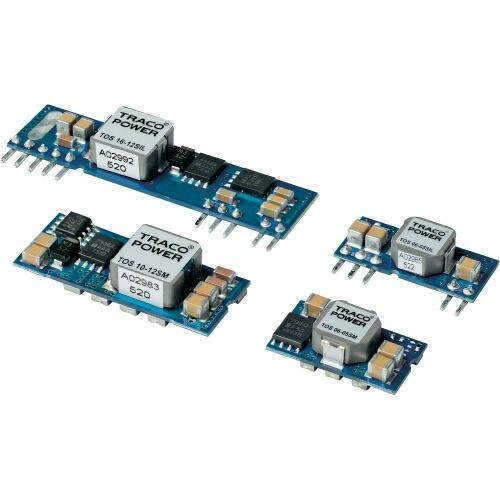

TOS 10-12SM
RoHS
RoHS compliant
RoHS compliantPackage 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.75-5V 50W
PDF
/
Buying Options
Total Price: USD $27.46
Unit Price: USD $27.456
≥1 USD $27.456
Inventory: 45
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Surface Mount
Package / Case 5-SMD Module
Surface Mount NO
Technical
Operating Temperature -40°C~85°C
Published 2010
Series TOS
Size / Dimension 1.30Lx0.53W x 0.33 H 33.0mmx13.5mmx8.3mm
Feature Remote On/Off, OCP, OTP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 7
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power (Watts) 50W
Additional Feature SEIGHTED HGT NOM
Technology HYBRID
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-N7
Number of Outputs 1
Efficiency 93%
Voltage - Input (Max) 14V
Voltage - Output 1 0.75V~5V
Voltage - Input (Min) 8.3V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Current - Output (Max) 10A
Dimensions
Height Seated (Max) 8.28mm
Length 33mm
Compliance
RoHS Status ROHS3 Compliant
