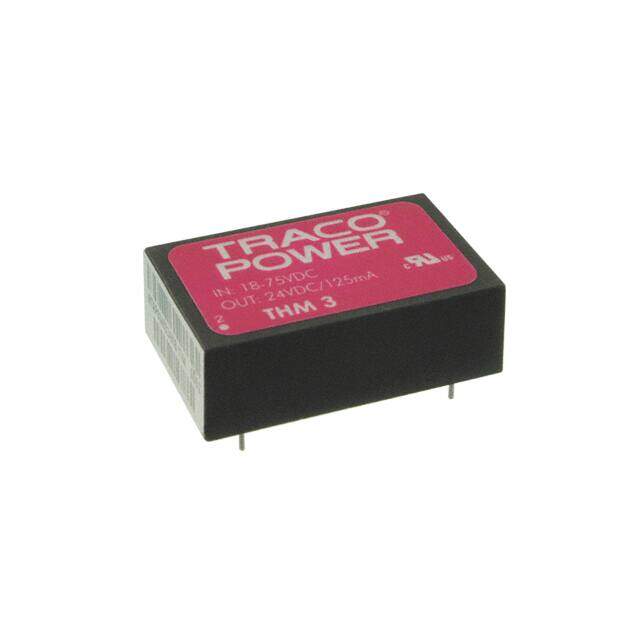

THM 3-4815WI
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 24V 3W
PDF
/
Buying Options
Total Price: USD $38.16
Unit Price: USD $38.1568
≥1 USD $38.1568
≥10 USD $32.186
Inventory: 97
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Through Hole
Package / Case 24-DIP Module, 6 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~90°C
Published 2013
Series THM 3WI (3W)
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Feature OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications Medical
Power (Watts) 3W
Additional Feature SEATED HGT CALCULATED
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-P6
Number of Outputs 1
Efficiency 86.5%
Voltage - Isolation 5kV
Voltage - Input (Max) 75V
Output Voltage 24V
Voltage - Output 1 24V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 125mA
Total Power Output-Max 3W
Dimensions
Width 20.3mm
Compliance
RoHS Status ROHS3 Compliant
