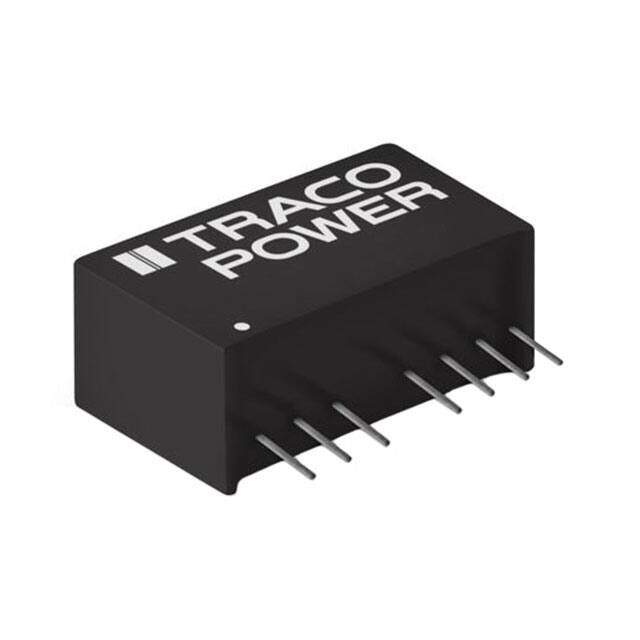

TEC 2-4810
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 1.7W
PDF
/
Buying Options
Total Price: USD $9.13
Unit Price: USD $9.1344
≥1 USD $9.1344
≥10 USD $8.998
≥100 USD $8.859488
≥500 USD $8.58264
≥1000 USD $7.752096
≥3000 USD $7.61369
Inventory: 99
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Current - Output (Max) 500mA
Voltage - Input (Min) 36V
Voltage - Output 1 3.3V
Voltage - Input (Max) 75V
Voltage - Isolation 1.6kV
Efficiency 76%
Number of Outputs 1
Power (Watts) 1.7W
Applications ITE (Commercial)
Terminal Finish Tin (Sn)
Type Isolated Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, SCP
JESD-609 Code e3
Size / Dimension 0.86Lx0.36W x 0.44 H 21.8mmx9.1mmx11.2mm
Series TEC 2 (2W)
Operating Temperature -40°C~95°C With Derating
Physical
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
