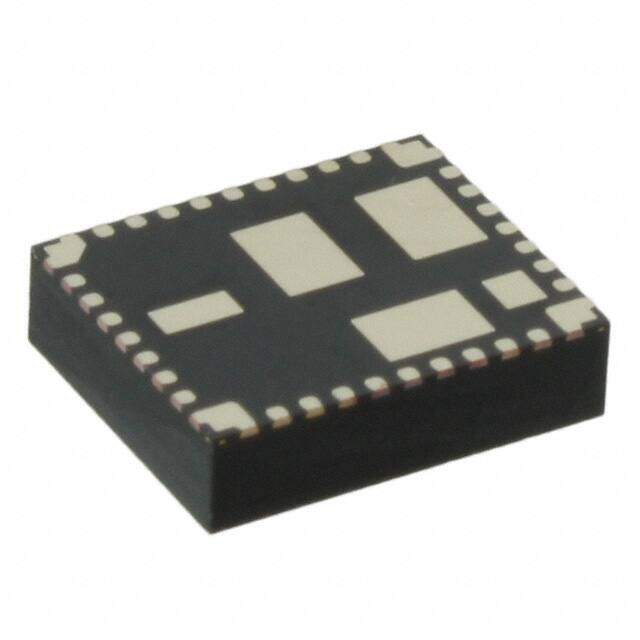

TPS84259RKGR
RoHS
RoHS compliant
RoHS compliantPackage 41-BQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description
IC REG BUCK NEG ADJ 41B1QFN
PDF
/
Buying Options
Total Price: USD $9.58
Unit Price: USD $9.5832
≥1 USD $9.5832
≥10 USD $9.50928
≥100 USD $9.43712
≥500 USD $9.291744
≥1000 USD $9.00152
≥3000 USD $8.130408
Inventory: 986
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 41-BQFN Module
Number of Pins 41
Technical
Operating Temperature -40°C~85°C
Packaging Cut Tape (CT)
Size / Dimension 0.43Lx0.35W x 0.11 H 11.0mmx9.0mmx2.8mm
JESD-609 Code e4
Feature OCP, OTP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 41
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications ITE (Commercial)
Subcategory Switching Regulator or Controllers
Max Power Dissipation 15W
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 250
Number of Functions 1
Terminal Pitch 0.9mm
Depth 9.15mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number TPS84259
Pin Count 41
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 86%
Voltage - Input (Max) 40V
Output Voltage -17V
Max Output Current 2A
Voltage - Output 1 -3V~-17V
Input Voltage-Nom 12V
Min Supply Voltage 4.5V
Output Current 2A
Control Features Enable, Active High
Topology Boost
Control Mode VOLTAGE-MODE
Max Output Power 15W
Switching Frequency 900kHz
