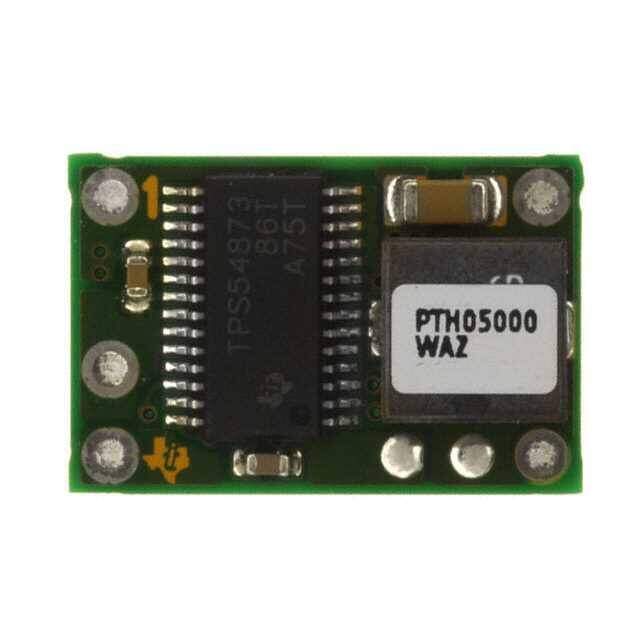

PTH05000WAZ
RoHS
RoHS compliant
RoHS compliantPackage 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.9-3.6V 6A
PDF
/
Buying Options
Total Price: USD $10.81
Unit Price: USD $10.8064
≥1 USD $10.8064
≥10 USD $10.7272
≥100 USD $10.64448
≥500 USD $10.4808
≥1000 USD $10.153229
≥3000 USD $9.170674
Inventory: 863
Minimum: 1
-
+
Technical Details
Technical
Control Mode VOLTAGE-MODE
Current - Output 1 6A
Min Output Voltage 900mV
Max Output Power 21.6W
Isolation Non-Isolated
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 4.5V
Protections OUTPUT OVER CURRENT;THERMAL
Max Output Voltage 3.6V
Output Power 21.6W
Output Current 6A
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Voltage - Output 1 0.9V~3.6V
Max Output Current 6A
Output Voltage 3.6V
Efficiency 92%
Approval Agency "UL,CSA"
Number of Outputs 1
Pin Count 5
Base Part Number TH05000
Frequency 700kHz
Depth 12.57mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 21.6W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature OTP, UVLO
JESD-609 Code e1
Size / Dimension 0.75Lx0.50W x 0.36 H 19.1mmx12.7mmx9.1mm
Series PTH05000W
Packaging Tray
Operating Temperature -40°C~85°C
Dimensions
Height 8.5mm
Thickness 8.25mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Number of Pins 5
Surface Mount NO
Package / Case 5-SMD Module
Mounting Type Surface Mount
Contact Plating Copper, Silver, Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
Alternative Model
