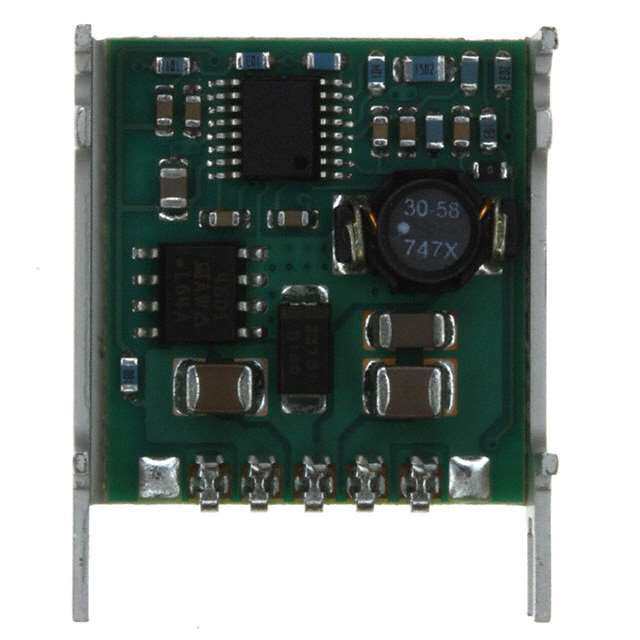

PT5505A
RoHS
RoHS compliant
RoHS compliantPackage 5-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
REGULATOR 1.5V ADJ 3A 5VIN HORZ
PDF
/
Inventory: 7863
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 22.9mm
Length 28.19mm
Technical
Isolation Non-Isolated
Switcher Configuration BUCK
Control Mode VOLTAGE-MODE
Output Current 3A
Input Voltage-Nom 5V
Voltage - Input (Min) 3.1V
Max Output Current 3A
Output Voltage 1.5V
Voltage - Input (Max) 5.5V
Efficiency 81%
Number of Outputs 1
Pin Count 5
Base Part Number PT5505
Depth 22.86mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 4.5W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series Excalibur? PT5500
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 6.5g
Number of Pins 5
Package / Case 5-SIP Module
Mounting Type Through Hole, Right Angle
Mount Through Hole
