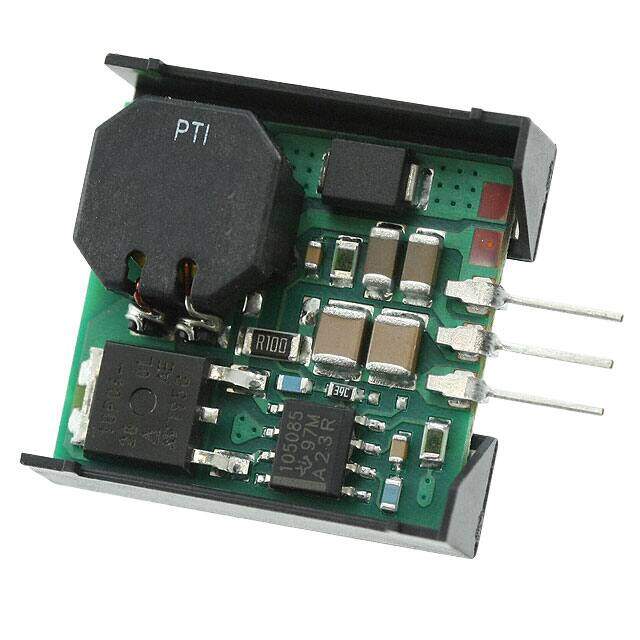

78ST136VC
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.6V 1.5A
PDF
/
Inventory: 8991
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Height 23.876mm
Technical
Switching Frequency-Max 700kHz
Switcher Configuration BUCK
Control Mode VOLTAGE-MODE
Voltage - Input (Min) 7V
Max Output Current 1.5A
Output Voltage 3.6V
Voltage - Input (Max) 26V
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XSMA-T3
Base Part Number 78ST136
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 5.4W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature OTP, SCP
Size / Dimension 0.90Lx0.31W x 0.94 H 22.9mmx7.9mmx23.9mm
Series 78ST100
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount Through Hole
