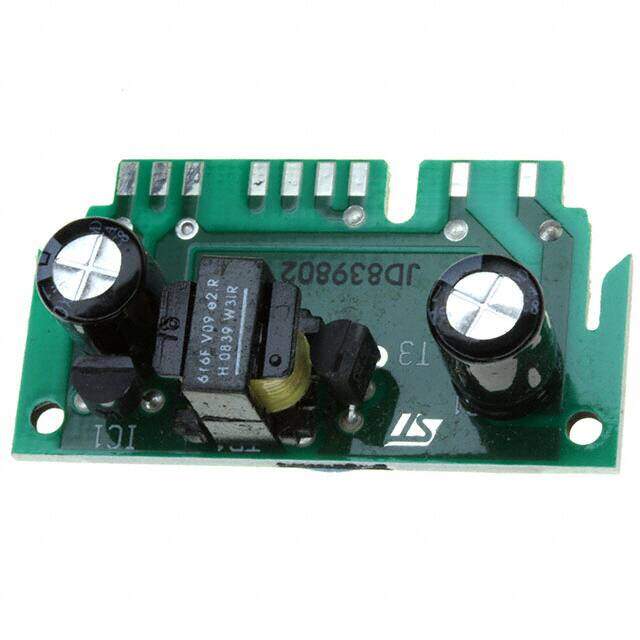

SPDC400FC12M0.35
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - Board Mount / DC DC Converters
Description
IC PWR SUPPLY DC-DC STEPDOWN
PDF
/
Buying Options
Total Price: USD $0.04
Unit Price: USD $0.038982
≥1 USD $0.038982
≥200 USD $0.015554
≥500 USD $0.015035
≥1000 USD $0.014778
Inventory: 6850
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 17.018mm
Technical
Isolation Non-Isolated
Current - Output 1 350mA
Output Power 4W
Output Current 350mA
Trim/Adjustable Output NO
Input Voltage-Nom 320V
Voltage - Input (Min) 100V
Max Output Current 350mA
Output Voltage -12V
Voltage - Input (Max) 370V
Efficiency 80%
Number of Outputs 1
Base Part Number SPDC
Depth 24mm
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Applications ITE (Commercial)
Type Non-Isolated PoL Module
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 1.77Lx0.94W x 0.67 H 45.0mmx24.0mmx17.1mm
Series SPDC400-4W
Packaging Bulk
Operating Temperature -10°C~85°C
Physical
Number of Pins 9
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
