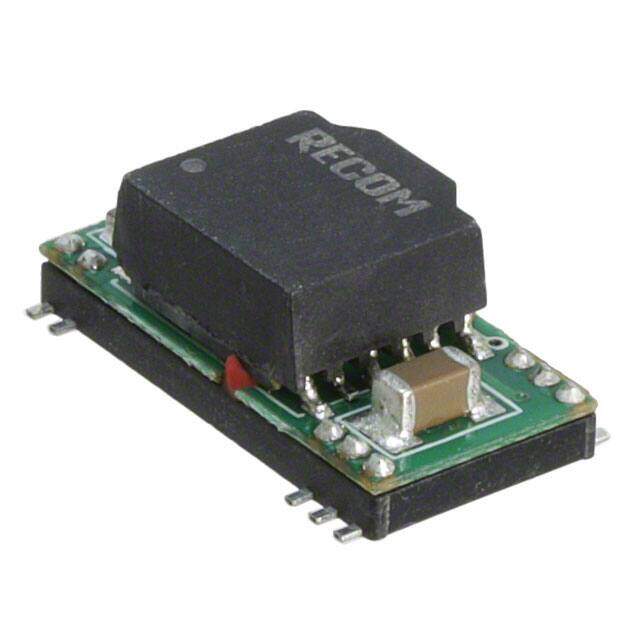

RAM-0505S
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 1W 05VIN 05VOUT 3kVDC ISO
PDF
/
Buying Options
Total Price: USD $11.79
Unit Price: USD $11.792
≥1 USD $11.792
≥10 USD $11.70224
≥100 USD $11.61248
≥500 USD $11.433664
≥1000 USD $11.076208
≥3000 USD $10.0936
Inventory: 116
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 8.7mm
Length 18mm
Height 6.7mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Nominal Output Voltage 5V
Max Output Power 1W
Nominal Input Voltage 5V
Current - Output 1 200mA
Max Output Voltage 5V
Output Power 1W
Output Current 200mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Max Output Current 200mA
Output Voltage 5V
Voltage - Input (Max) 5.5V
Voltage - Isolation 3kV
Efficiency 78%
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 6.7mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Series ECONOLINE RAM (1W)
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Weight 1.3g
Package / Case SMD/SMT
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
