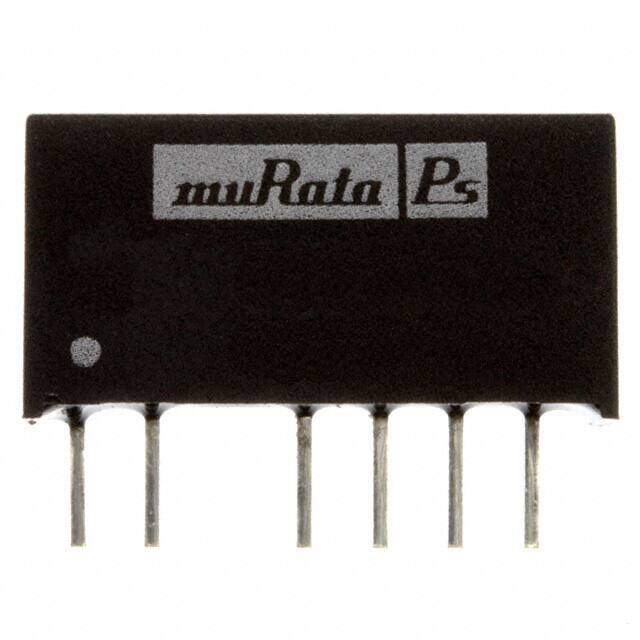

NMD050509SC
RoHS
/
Package 7-SIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 1W TWIN 5-5/9V SIP Twin Output
PDF
/
Buying Options
Total Price: USD $99.95
Unit Price: USD $99.95045
≥1 USD $99.95045
≥10 USD $96.72615
≥100 USD $93.5028
≥500 USD $83.8299
Inventory: 1105
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 6 Leads
Number of Pins 6
Technical
Operating Temperature 0°C~70°C
Packaging Tube
Series NMD (1W)
Size / Dimension 0.77Lx0.24W x 0.39 H 19.5mmx6.0mmx10.0mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Number of Functions 1
Pin Count 7/6
Number of Outputs 2
Efficiency 80%
Voltage - Isolation 1kV
Voltage - Input (Max) 5.5V
Output Voltage 5V
Max Output Current 56mA
Voltage - Output 1 5V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 100mA 56mA
Output Power 500mW
Voltage - Output 2 9V
Current - Output 1 100mA
Total Power Output-Max 1W
Nominal Input Voltage 5V
Current - Output 2 56mA
Dimensions
Height 9.906mm
Length 19.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
