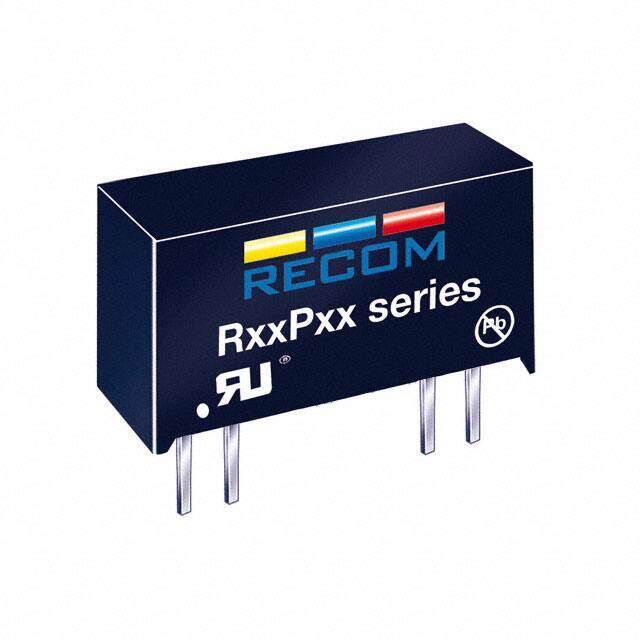

R15P05S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 1W 15VIN 05VOUT
PDF
/
Buying Options
Total Price: USD $12.15
Unit Price: USD $12.145747
≥1 USD $12.145747
≥10 USD $11.458247
≥100 USD $10.80967
≥500 USD $10.197799
≥1000 USD $9.620571
Inventory: 1436
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Number of Pins 4
Weight 4.3g
Technical
Operating Temperature -40°C~90°C
Packaging Tube
Series ECONOLINE RxxPxx (1W)
Size / Dimension 0.77Lx0.39W x 0.49 H 19.7mmx9.8mmx12.5mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial), Medical
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 9.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 7/4
Number of Outputs 1
Efficiency 75%
Voltage - Isolation 6.4kV
Voltage - Input (Max) 16.5V
Output Voltage 5V
Max Output Current 200mA
Voltage - Input (Min) 13.5V
Input Voltage-Nom 15V
Trim/Adjustable Output NO
Output Current 200mA
Output Power 1W
Max Output Voltage 5V
Total Power Output-Max 1W
Nominal Input Voltage 15V
Isolation Isolated
Dimensions
Height 12.5mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
