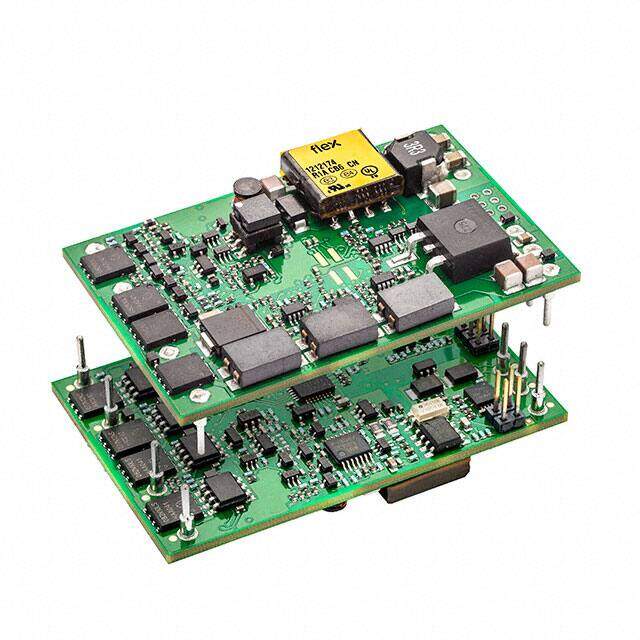

PIM4820BPD
RoHS
RoHS compliant
RoHS compliantPackage Quarter Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
36-75; 48; 5; 5; N/A; 800
PDF
/
Buying Options
Total Price: USD $84.33
Unit Price: USD $84.331506
≥1 USD $84.331506
Inventory: 4426
Minimum: 1
-
+
Technical Details
Technical
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 140W
Number of Outputs 1
Efficiency 99.20%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 75V
Voltage - Output 1 0.85V~7V
Voltage - Input (Min) 36V
Current - Output (Max) 20A
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, PMBus?
Size / Dimension 2.28Lx1.45W x 0.42 H 57.9mmx36.8mmx10.7mm
Series PIM4820 (960-1080W)
Operating Temperature -40°C~110°C With Derating
Compliance
RoHS Status ROHS3 Compliant
Physical
Supplier Device Package Quarter Brick
Package / Case Quarter Brick
Mounting Type Through Hole
Supply Chain
Factory Lead Time 16 Weeks
