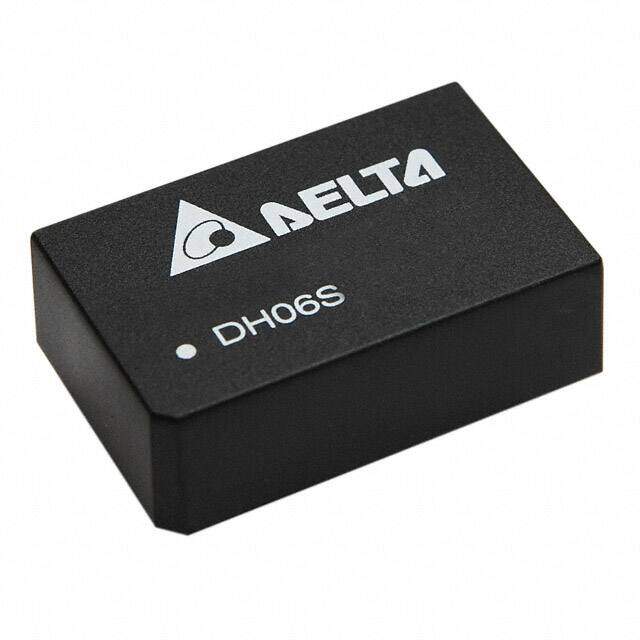

DH06S1205A image
Favorite
DH06S1205A image
Favorite

DH06S1205A

Delta Electronics
RoHS
RoHS RoHS compliant
Package 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC-DC 1-OUT 5V 1.2A 6W 7-Pin DIP
PDF
/
Buying Options
Total Price: USD $15
Unit Price: USD $15.004
≥1 USD $15.004
≥10 USD $14.89136
≥100 USD $14.7752
≥500 USD $14.54464
≥1000 USD $13.851904
≥3000 USD $12.697608
Inventory: 396
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 20.32mm
Length 31.75mm
Height 10.16mm

Technical

Min Input Voltage (DC) 9V
Max Input Voltage (DC) 18V
Current - Output 1 1.2A
Max Input Voltage 18V
Min Input Voltage 9V
Output Power 6W
Output Current 1.2A
Current - Output (Max) 1.2A
Voltage - Input (Min) 9V
Voltage - Output 1 5V
Max Output Current 1.2A
Output Voltage 5V
Voltage - Input (Max) 18V
Voltage - Isolation 1.5kV
Efficiency 78%
Number of Outputs 1
Max Power Dissipation 6W
Power (Watts) 6W
Applications Medical
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, SCP, UVLO
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series DH06S/D (6W)
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 11 Weeks
