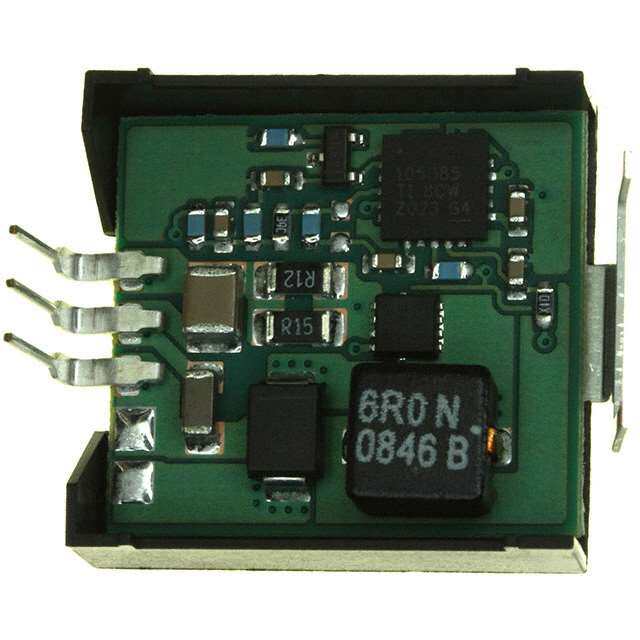

PT78HT253H
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5.25V 2A
PDF
/
Inventory: 5372
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 7.874mm
Technical
Isolation Non-Isolated
Switching Frequency-Max 800kHz
Switcher Configuration BUCK
Min Output Voltage 5.25V
Current - Output 1 2A
Control Mode VOLTAGE-MODE
Max Output Voltage 5.25V
Output Current 2A
Voltage - Input (Min) 9V
Max Output Current 2A
Output Voltage 5.25V
Voltage - Input (Max) 28V
Efficiency 85%
Number of Outputs 1
Pin Count 3
Base Part Number 78HT253
Depth 22.86mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 10.5W
Subcategory Switching Regulator or Controllers
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.94Lx0.90W x 0.31 H 23.9mmx22.9mmx7.9mm
Series PT78HT200
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 3
Surface Mount NO
Package / Case 3-SIP Module
Mounting Type Through Hole, Right Angle
