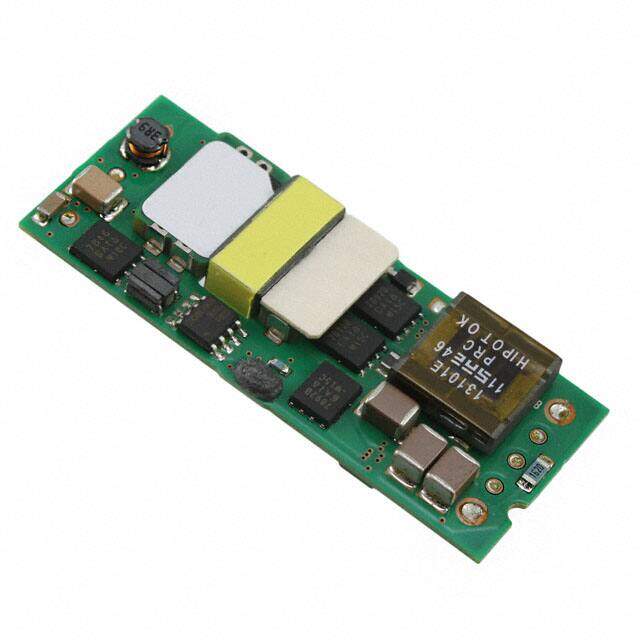

EQW020A0A41-SZ
RoHS
/
Package 8-SMD Module, 1/8 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 100W
PDF
/
Buying Options
Total Price: USD $410.44
Unit Price: USD $410.438
≥1 USD $410.438
Inventory: 204
Minimum: 1
-
+
Technical Details
Technical
Efficiency 91.7%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Voltage - Input (Min) 36V
Current - Output (Max) 20A
Control Features Enable, Active Low
Number of Outputs 1
Power (Watts) 100W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Size / Dimension 2.28Lx0.90W x 0.34 H 57.9mmx22.8mmx8.5mm
Series EQW020
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Package / Case 8-SMD Module, 1/8 Brick
Mounting Type Surface Mount
Alternative Model
