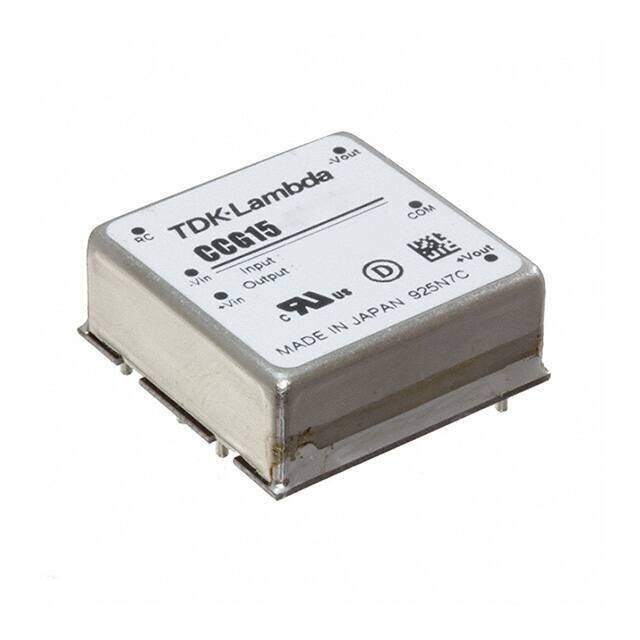

CCG154803S
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 15W
PDF
/
Inventory: 4730
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2016
Series CCG15 (15W)
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Feature Remote On/Off, OCP, OVP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 15W
Max Power Dissipation 13W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Depth 25.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-XDMA-P6
Number of Outputs 1
Efficiency 85%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 76V
Output Voltage 3.3V
Max Output Current 4A
Voltage - Output 1 3.3V
Trim/Adjustable Output YES
Output Power 13.2W
Control Features Enable, Active Low
Current - Output 1 4A
Max Output Power 13.2W
Max Input Voltage (DC) 76V
Min Input Voltage (DC) 18V
Dimensions
Height 9.906mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
