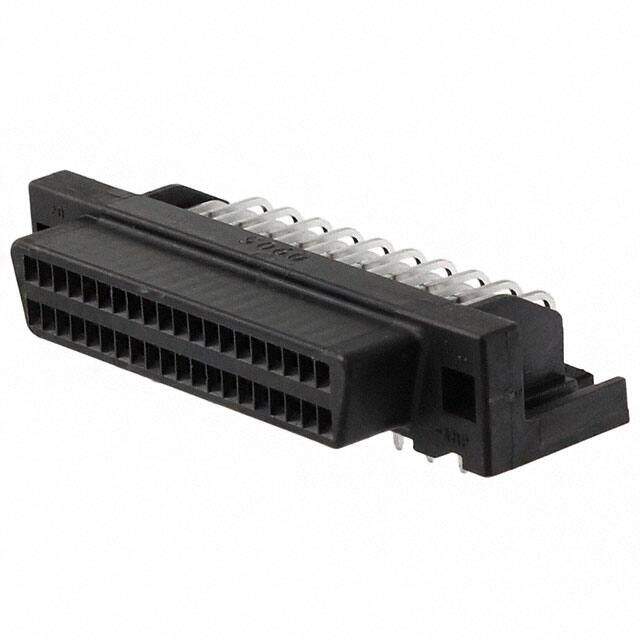

6-5173277-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors AMPLIMITE.050 CAP ASSY (V) 50P PBF
PDF
/
Buying Options
Total Price: USD $13.75
Unit Price: USD $13.7544
≥1 USD $13.7544
≥10 USD $13.47192
≥100 USD $13.113408
≥500 USD $12.468368
≥1000 USD $11.250184
≥3000 USD $11.17857
Inventory: 1476
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material PBT
PCB Mounting Orientation Right Angle
PCB Mount Retention With
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2009
Series AMPLIMITE .050 I
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Female Sockets
Number of Positions 40
Color Black
Number of Rows 2
Voltage - Rated 100V
Subcategory D Type Connectors
Contact Type Signal
Pitch 1.27mm
Total Number of Contacts 40
Orientation Right Angle
Shielding Unshielded
Depth 17.17mm
Current Rating 1A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Number Of PCB Rows 4
PCB Contact Pattern STAGGERED
Body Breadth 0.307 inch
Lead Length 3.1mm
Row Spacing 2.54 mm
Body/Shell Style RECEPTACLE
ELV Compliant
Connector Style D-Type, Board to Board
Number of Ports 1
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Hole Diameter 2.15 mm
Backset Spacing 0.204 (5.20mm)
Mating Connector Lock Without
Dimensions
Length 37.53mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
