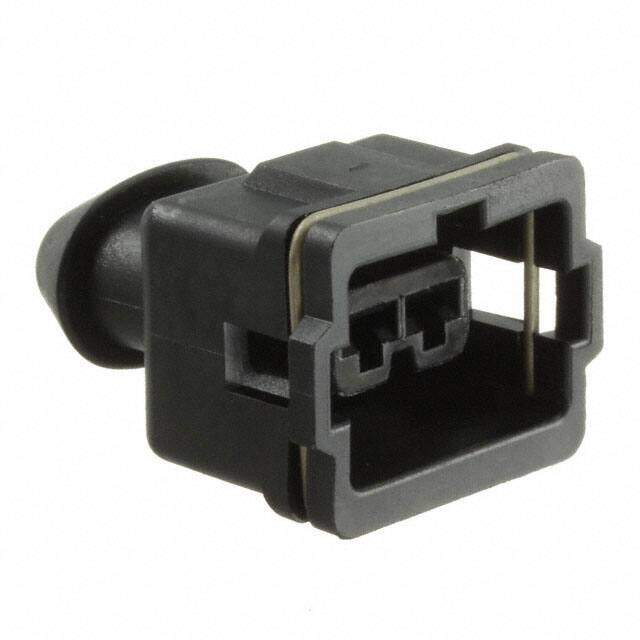

826008-5 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description Automotive Connectors 2 POS MINI TIMER HSG
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Not Applicable
RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Width 28mm
Length 20mm
Height 17.5006mm

Technical

Polarized Yes
Hybrid Connector No
Mating Tab Width 2.794mm
Contact Termination Crimp
Circuit Application Signal
ELV Compliant
Note Contacts Not Included
Empty Shell YES
Depth 28mm
Orientation Straight
Total Number of Contacts 2
Pitch 0.197 5.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 110°C
Number of Positions 2
Connector Type Receptacle
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series Junior Power Timer
Published 2003
Packaging Bulk

Physical

Housing Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 20 Weeks
