1689873
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

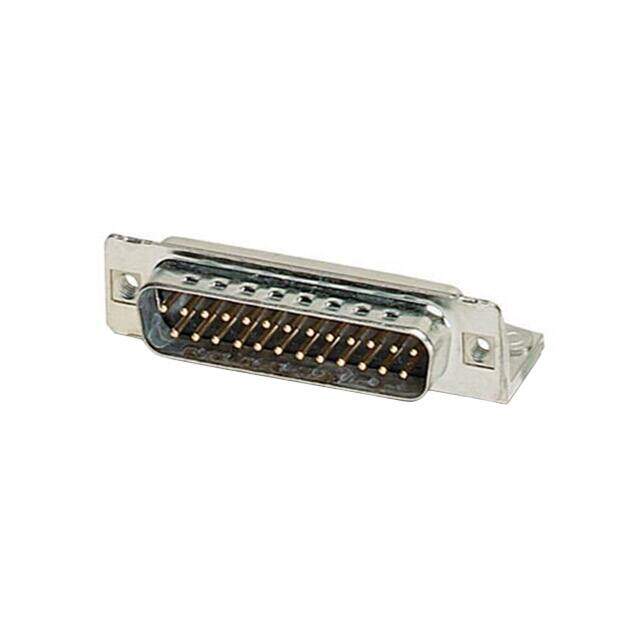

D-Sub Standard Connectors VS-25-ST-DSUB-ER 25POS M W/ANG SOLDER
PDF
/
Buying Options
Total Price: USD $20.46
Unit Price: USD $20.46
≥1 USD $20.46
≥10 USD $18.82056
≥100 USD $17.3888
≥500 USD $16.570488
≥1000 USD $16.479549
Inventory: 96
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Backset Spacing 0.370 (9.40mm)
Shell Size, Connector Layout 3 DB B
Connector Style D-Sub
Flange Feature Housing/Shell (M3)
Empty Shell NO
UL Flammability Code 94V-0
Contact Finish Gold
Current Rating 5A
Reach Compliance Code unknown
Total Number of Contacts 25
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 125V
Gender Male
Number of Rows 2
Color Grey
Number of Positions 25
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
JESD-609 Code e4
Published 2011
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Yellow Chromate Plated
Housing Material Glass
Dielectric Material Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
