PRPC004DFAN-RC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

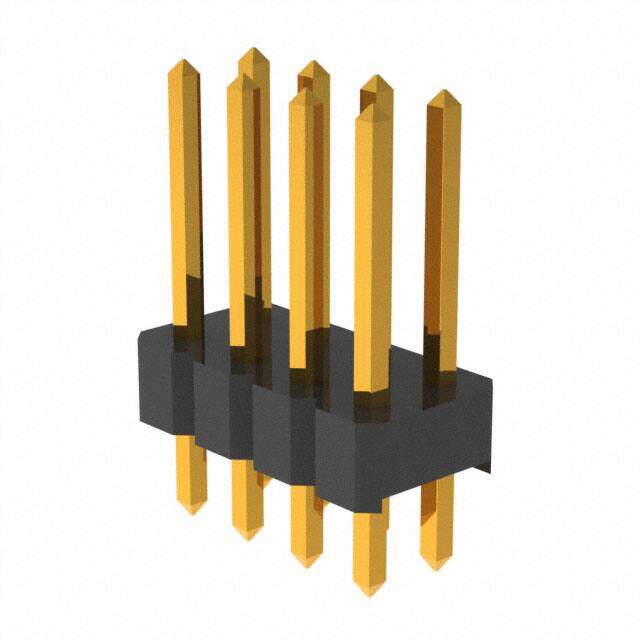

CONN HEADER .100" DUAL STR 8POS
PDF
/
Buying Options
Total Price: USD $0.21
Unit Price: USD $0.2112
≥1 USD $0.2112
≥10 USD $0.17512
≥100 USD $0.134464
≥500 USD $0.113749
≥1000 USD $0.093078
≥3000 USD $0.082729
Inventory: 2153
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating Flash
Technical
Mating Contact Pitch 0.1 inch
Overall Contact Length 0.537 13.63mm
Body Depth 0.1 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.318 8.08mm
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.120 3.05mm
Row Spacing - Mating 0.100 (2.54mm)
Body Length or Diameter 0.4 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.098 2.50mm
Current Rating (Amps) 3A per Contact
Contact Type Male Pin
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 8
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2011
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
