09693115094
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

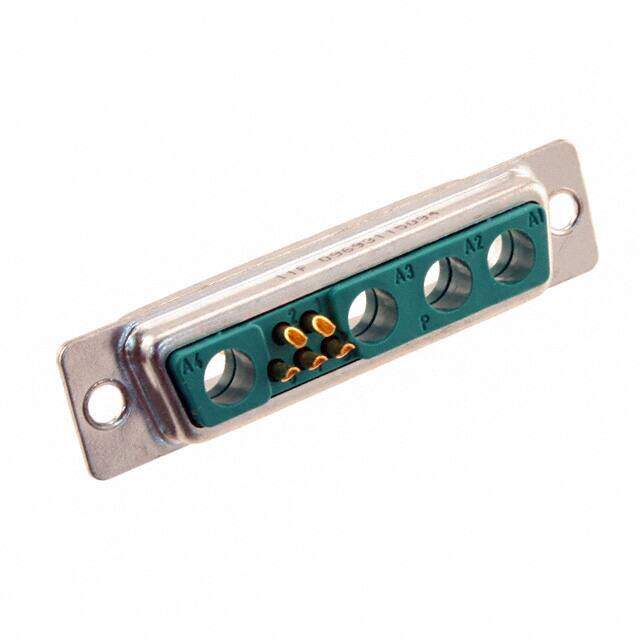

HARTING 09 69 311 5094 Combination Layout D Sub Connector, Mixed Signal, D Sub-M Series, DB-9W4, Plug, 5 Contacts, 4
PDF
/
Buying Options
Total Price: USD $7.06
Unit Price: USD $7.0576
≥1 USD $7.0576
≥10 USD $6.38528
≥100 USD $6.032224
≥500 USD $5.884912
≥1000 USD $5.590728
≥3000 USD $5.002237
Inventory: 122
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material NOT SPECIFIED
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Polyester
Dielectric Material Polyester Thermoplastic, Glass Filled
Housing Material Glass
Body Material Metal
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 9 (5 + 4 Coax or Power)
Color Green
Number of Rows 2
Gender Male
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal and Coax or Power (Not Included)
Mixed Contacts YES
Option GENERAL PURPOSE
Current Rating (Amps) 5A
Contact Finish Gold or Gold-Palladium
Number of Contacts 9
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub, Combo
Shell Size, Connector Layout 3 DB B - 9W4
Number of Power Positions 4
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
