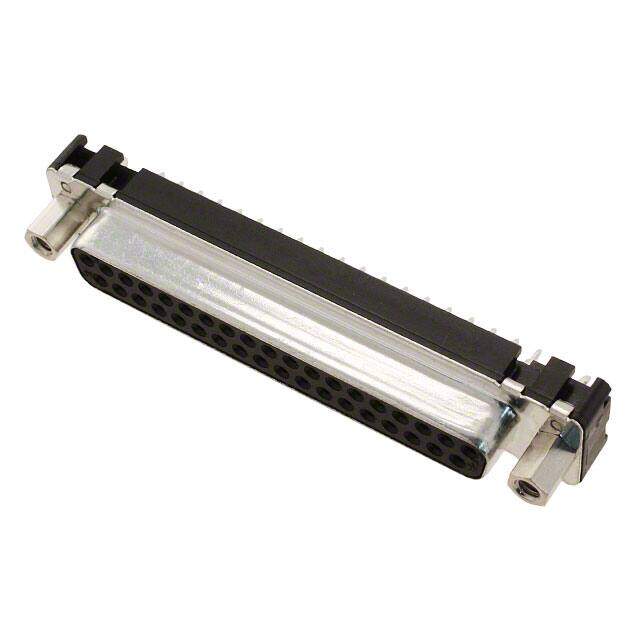

09664516513 image
Favorite
09664516513 image
Favorite

09664516513

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors DSUB SV FEM SSDP STR 37P PL2 GC SLK 4-40
PDF
/
Buying Options
Total Price: USD $12.57
Unit Price: USD $12.5664
≥1 USD $12.5664
≥10 USD $11.13992
≥100 USD $10.71136
≥500 USD $10.2828
≥1000 USD $9.711504
≥3000 USD $8.854595
Inventory: 187
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Material Thermoplastic
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel

Technical

Operating Temperature -55°C~125°C
Packaging Tray
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 37
Termination Solder
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Rows 2
Gender Receptacle
HTS Code 8536.69.40.30
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 6.5A
Pitch 2.76mm
Total Number of Contacts 37
Orientation Straight
Depth 12.5mm
Current Rating 6A
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 4 DC C
Test Voltage 1kV

Dimensions

Height 12.5mm
Length 69.7mm
Width 12.4mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
