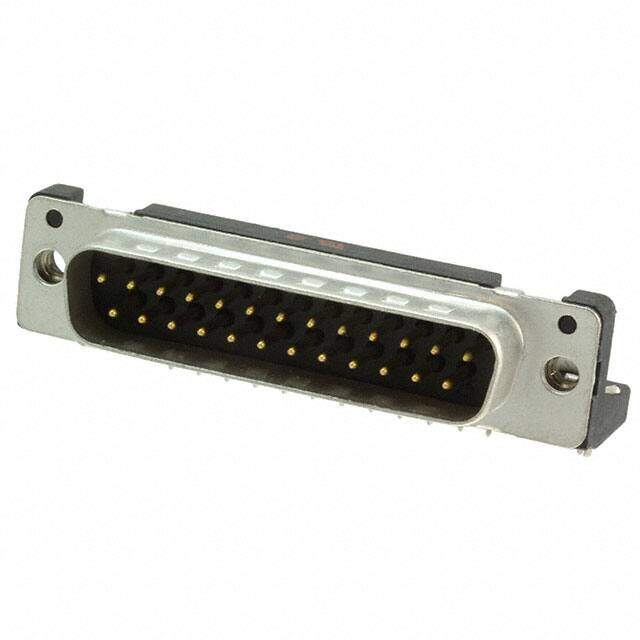

09663626812
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors DSUB SV ML SSDP ANG73-254 25P AU2
PDF
/
Buying Options
Total Price: USD $9.84
Unit Price: USD $9.8384
≥1 USD $9.8384
≥10 USD $8.71816
≥100 USD $8.382528
≥500 USD $7.60012
≥1000 USD $6.929534
≥3000 USD $6.482467
Inventory: 95
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Board Lock, Grounding Indents
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 25
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 25
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Number of Rows 2
Gender Male
Contact Type Signal
Current Rating (Amps) 7.5A
Pitch 2.54mm
Orientation Right Angle
Current Rating 7A
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Number of Ports 1
Contact Form Machined
Shell Size, Connector Layout 3 DB B
Dimensions
Length 53.1mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
