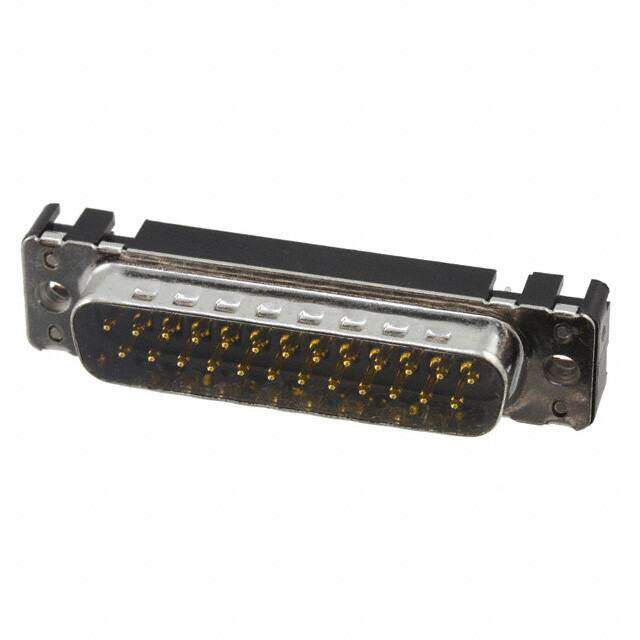

09653216702

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description ROHS3Compliant Straight GENERAL PURPOSE MULTIPLE MATING PARTS AVAILABLE Plug, Male Pins Connector -55C~125C 6.5A 12.5mm
PDF
/
Buying Options
Total Price: USD $6.14
Unit Price: USD $6.1424
≥1 USD $6.1424
≥10 USD $5.55456
≥100 USD $5.247616
≥500 USD $5.119488
≥1000 USD $4.863496
≥3000 USD $4.351574
Inventory: 167
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 53.2mm

Technical

Shell Size, Connector Layout 3 DB B
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Depth 12.5mm
Orientation Straight
Total Number of Contacts 25
Current Rating (Amps) 6.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
HTS Code 8536.69.40.30
Gender Male
Number of Rows 2
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Number of Terminations 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 7 Weeks
