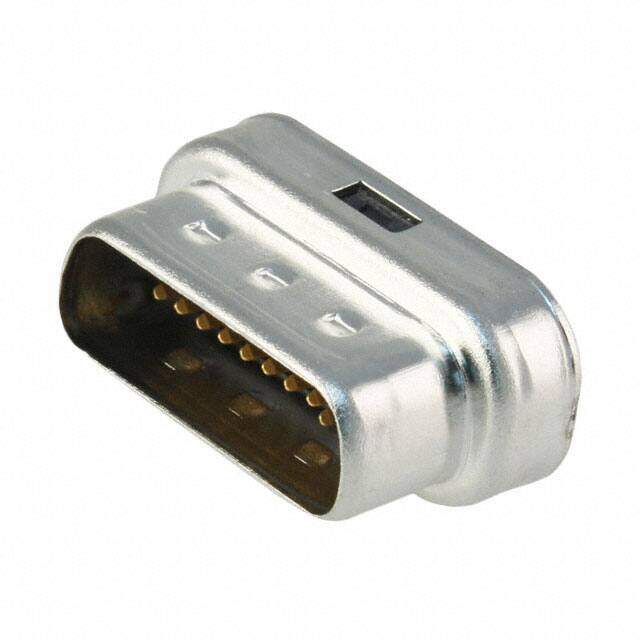

0750001018
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-TYPE PLUG 18POS VERT SLDR
PDF
/
Buying Options
Total Price: USD $18.52
Unit Price: USD $18.520982
≥1 USD $18.520982
≥10 USD $17.472629
≥100 USD $16.483612
≥500 USD $15.550574
≥1000 USD $14.670357
Inventory: 4305
Minimum: 1
-
+
Technical Details
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Dielectric Material Polymer, Glass Filled
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -20°C~85°C
Packaging Tube
Series PCI Express?, TDP?
Feature Grounding Indents, Shielded
Pbfree Code yes
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 18
Color Black
Number of Rows 2
Voltage - Rated 40V
Additional Feature POLARIZED, SHIELDED
HTS Code 8536.69.40.30
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1.5A
Total Number of Contacts 18
Contact Finish Gold
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Connector Style D-Type
Shell Size, Connector Layout 0.050 Pitch x 0.065 Row to Row
Dimensions
Contact Finish Thickness 15.0μin 0.38μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
