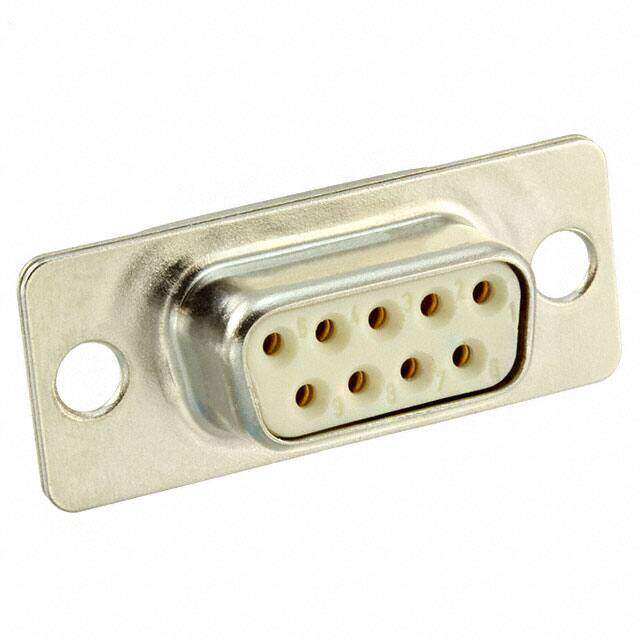

09641227240

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description PLUG, D, FILTERED, STRAIGHT, 9WAY - More Details
PDF
/
Buying Options
Total Price: USD $19.03
Unit Price: USD $19.025613
≥1 USD $19.025613
≥10 USD $17.948689
≥100 USD $16.932726
≥500 USD $15.974269
≥1000 USD $15.070065
Inventory: 9056
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Technical

Shell Size, Connector Layout 1 DE E
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Working Voltage 100V
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Current Rating 7.5A
Total Number of Contacts 9
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Capacitance 3.9nF
Additional Feature PANEL MOUNTABLE
Gender Male
Number of Rows 2
Color Natural
Number of Positions 9
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Filter, Grounding Indents
Packaging Bulk
Operating Temperature -20°C~125°C

Physical

Shell Material, Finish Steel
Body Material Plastic
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Shell Material Polycyclohexylenedimethylene
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 9 Weeks
