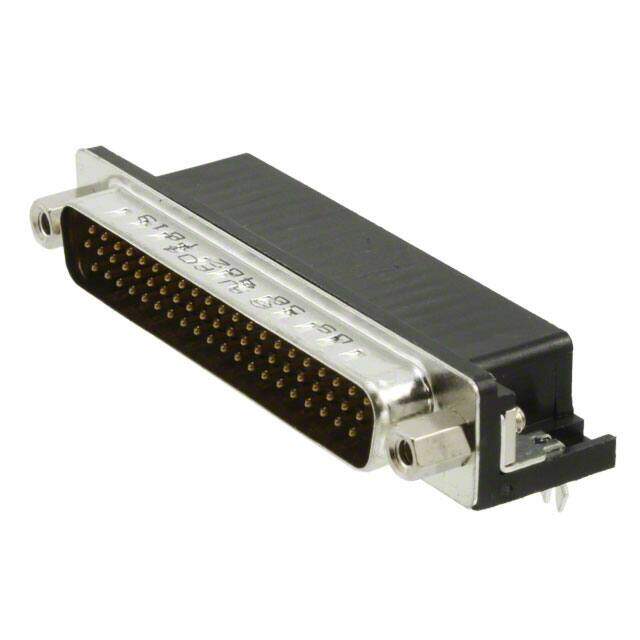

09564627813
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB HD PLUG 62POS R/A SLDR
PDF
/
Buying Options
Total Price: USD $14.69
Unit Price: USD $14.6872
≥1 USD $14.6872
≥10 USD $12.73096
≥100 USD $12.066208
≥500 USD $11.891264
≥1000 USD $10.49224
≥3000 USD $9.792781
Inventory: 25
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 62
Color Black
Number of Rows 3
Gender Male
Additional Feature PANEL MOUNTABLE
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.41mm
Total Number of Contacts 62
Orientation Right Angle
Depth 22.3mm
Current Rating 2A
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 3
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.509 inch
UL Flammability Code 94V-0
Empty Shell NO
Rated Current (Signal) 2A
Contact Resistance 25mOhm
Insulation Resistance 5000000000Ohm
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub, High Density
PCB Contact Row Spacing 2.54 mm
Mating Contact Row Spacing 0.078 inch
Contact Form Stamped
Shell Size, Connector Layout 4 DC C High Density
Backset Spacing 0.350 (8.89mm)
Dimensions
Height 12.55mm
Length 69.8mm
Width 12.93mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
