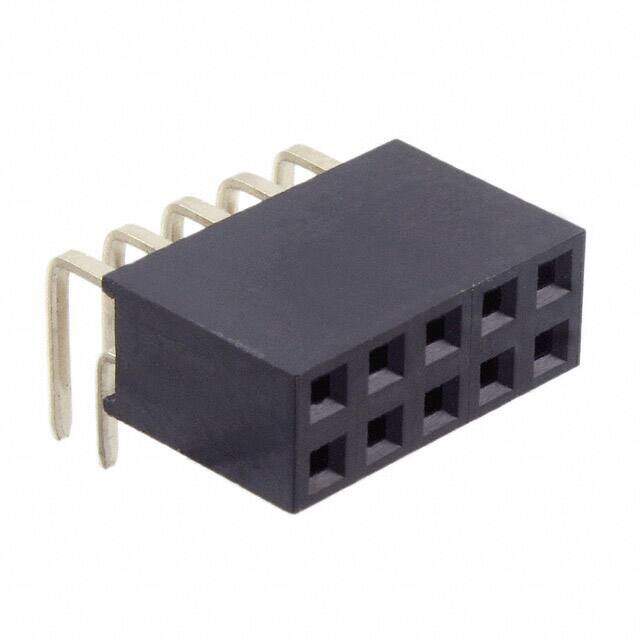

613010243121
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR 10POS 0.1 GOLD PCB R/A
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.900713
≥1 USD $0.900713
≥10 USD $0.84973
≥100 USD $0.801627
≥500 USD $0.756255
≥1000 USD $0.713449
Inventory: 3011
Minimum: 1
-
+
Technical Details
Technical
Termination Solder
Connector Type Header
Number of Positions 10
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Gender Female
Voltage - Rated 250VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Forked
Current Rating (Amps) 3A
Pitch 2.54mm
Insulation Height 0.200 5.08mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.130 3.30mm
Lead Pitch 2.54mm
Number of Contacts 10
Contact Finish - Post Gold
Contact Gender Female
Operating Supply Voltage 250V
Contact Resistance 20mOhm
Insulation Resistance 1GOhm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-PHD
Packaging Tray
Operating Temperature -40°C~105°C
Dimensions
Height 12.6mm
Length 5.08mm
Width 25.9mm
Physical
Housing Material PBT
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Number of Pins 10
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 14 Weeks
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
