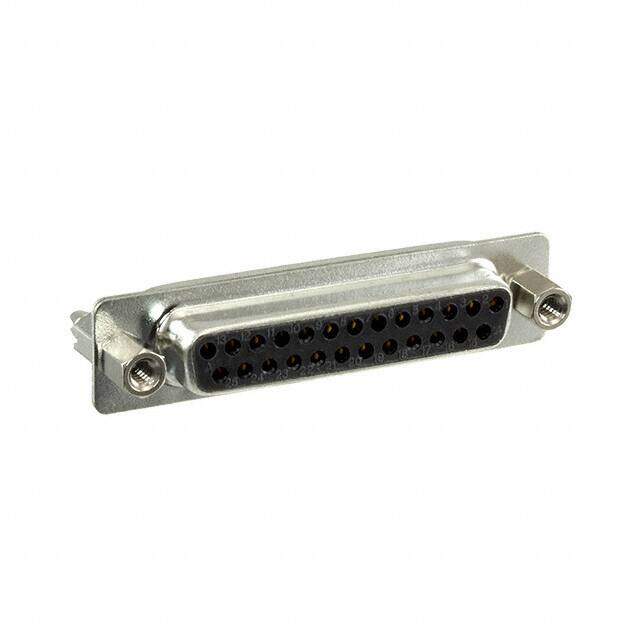

628-025-220-047

EDAC Inc.
RoHS
RoHS RoHS compliant
Package Metal
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors 25P RECPT VERT METAL
PDF
/
Buying Options
Total Price: USD $3.91
Unit Price: USD $3.9072
≥1 USD $3.9072
≥10 USD $3.5508
≥100 USD $3.36336
≥500 USD $3.28504
≥1000 USD $3.128576
≥3000 USD $2.737504
Inventory: 657
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness Flash
Width 12.6mm
Length 53mm
Height 13.1mm

Technical

Shell Size, Connector Layout 3 DB B
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style PLUG
Mating Contact Pitch 0.109 inch
Flange Feature Mating Side, Female Screwlock (4-40)
Insulation Resistance 5000000000Ohm
Contact Resistance 10mOhm
Rated Current (Signal) 5A
Body Breadth 0.494 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 5A
Total Number of Contacts 25
Contact Type Signal
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Additional Feature STAMPED CONTACTS, STANDOFFS
Number of Rows 2
Color Black
Number of Positions 25
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Shielded
Series 628
Published 2011
Packaging Tray
Operating Temperature -55°C~105°C

Physical

Shell Material, Finish Steel, Nickel Plated
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Package / Case Metal
Mounting Type Panel Mount, Through Hole
Mount Panel, Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 14 Weeks
