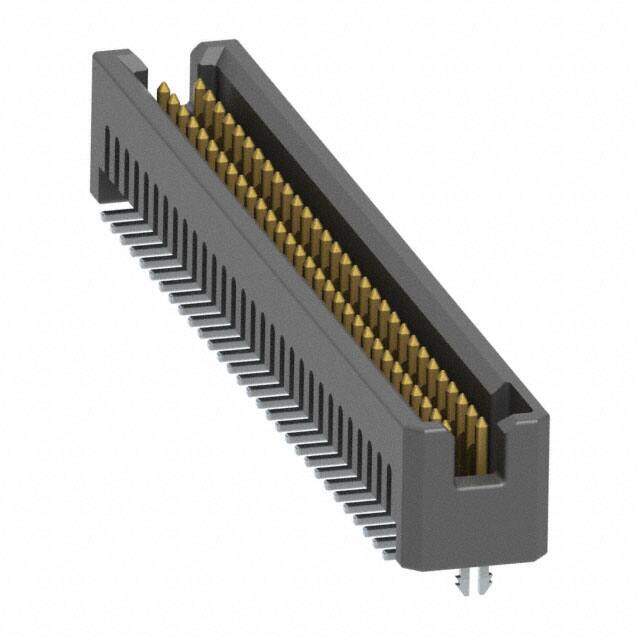

TFM-130-02-S-D-LC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
SAMTEC TFM-130-02-S-D-LC Board-To-Board Connector, TFM Series, 60 Contacts, Header, 1.27 mm, Surface Mount, 2 Rows
PDF
/
Buying Options
Total Price: USD $7.59
Unit Price: USD $7.5856
≥1 USD $7.5856
≥10 USD $7.2864
≥100 USD $6.908
≥500 USD $6.5384
≥1000 USD $5.9664
≥3000 USD $5.4384
Inventory: 174
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 41.28mm
Technical
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 350V
Mating Contact Pitch 0.05 inch
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.131 3.33mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.220 5.60mm
Depth 5.72mm
Orientation Straight
Total Number of Contacts 60
Current Rating (Amps) 2.9A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 275VAC
Gender Male
Number of Rows 2
Number of Positions 60
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
JESD-609 Code e3
Series Tiger Eye? TFM
Published 2011
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Mounting Option 1 LOCKING
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
