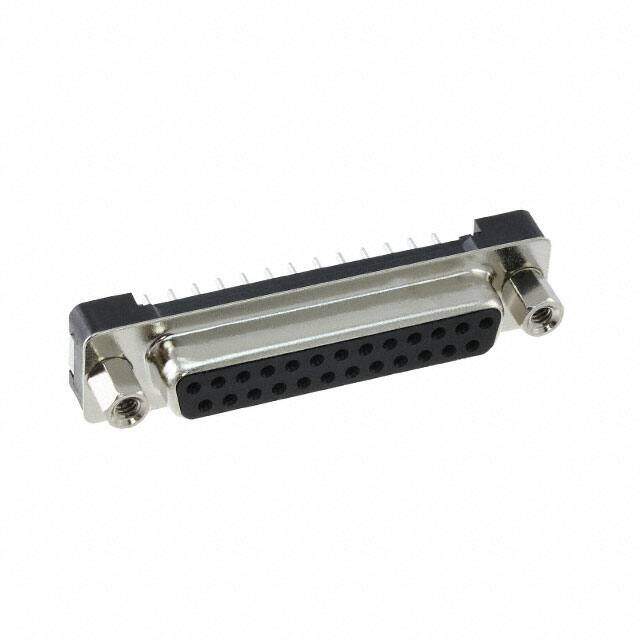

628-025-220-017

EDAC Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors 25P RCPT VRT PLASTIC
PDF
/
Buying Options
Total Price: USD $2.74
Unit Price: USD $2.7368
≥1 USD $2.7368
≥10 USD $2.4816
≥100 USD $2.350304
≥500 USD $2.295744
≥1000 USD $2.186448
≥3000 USD $1.913155
Inventory: 314
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness Flash
Width 12.6mm
Length 53mm
Height 12.1mm

Technical

Shell Size, Connector Layout 3 DB B
Connector Style D-Sub
Dielectric Withstanding Voltage 1000VAC V
Body/Shell Style PLUG
Mating Contact Pitch 0.109 inch
Flange Feature Mating Side, Female Screwlock (4-40)
Insulation Resistance 5000000000Ohm
Contact Resistance 10mOhm
Rated Current (Signal) 5A
Body Breadth 0.494 inch
PCB Contact Pattern STAGGERED
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 5A
Total Number of Contacts 25
Contact Type Signal
Subcategory D Type Connectors
HTS Code 8536.69.40.30
Additional Feature EXTENDED BODY
Number of Rows 2
Color Black
Number of Positions 25
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Shielded
Series 628
Published 2005
Packaging Tray
Operating Temperature -55°C~105°C

Physical

Shell Material, Finish Steel, Nickel Plated
Housing Material Polyester
Dielectric Material Polyester Thermoplastic
Mounting Type Panel Mount, Through Hole
Mount Panel, Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 14 Weeks
