1404412
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

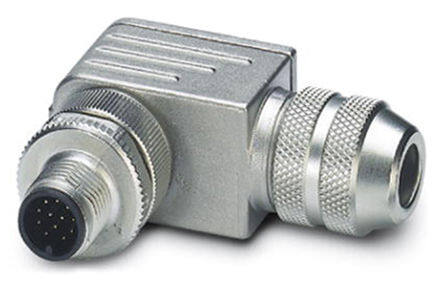

Plug-in connector SACC-M12MR-12SOL-PG 9-M SH 1404412 Phoenix Contact
PDF
/
Buying Options
Total Price: USD $53.41
Unit Price: USD $53.4072
≥1 USD $53.4072
Inventory: 81
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Shell Material Zinc Die Cast
Housing Material Metal
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Zinc Die Cast, Nickel
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series SACC
Feature Backshell
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 12
Color Silver
Voltage - Rated 30VAC/DC
HTS Code 8536.69.40.20
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 1.5A
Orientation A
Shielding Shielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 1A
Shell Finish Nickel
Shell Size - Insert M12-12
Cable Opening 0.236 ~ 0.315 (6.00mm ~ 8.00mm)
Compliance
Material Flammability Rating UL94 HB
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
