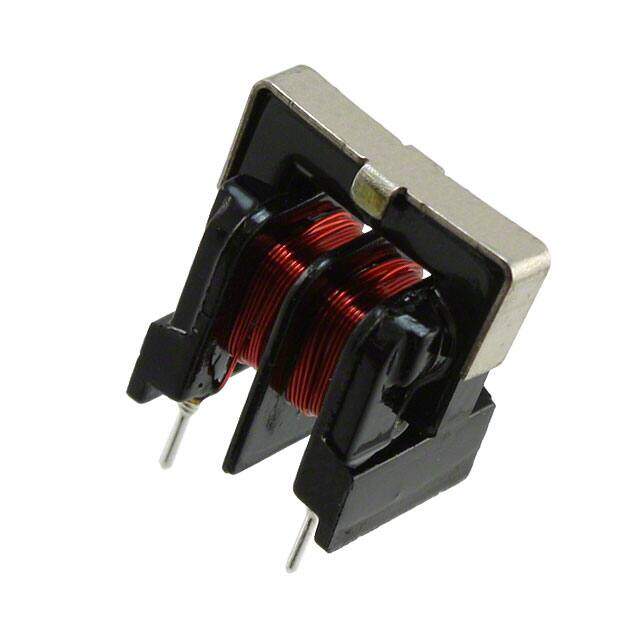

744862033 image
Favorite
744862033 image
Favorite
RoHS
RoHS RoHS compliant
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description CMC 3.3MH 800MA 2LN TH
PDF
/
Buying Options
Total Price: USD $3.34
Unit Price: USD $3.338503
≥1 USD $3.338503
≥10 USD $3.149534
≥100 USD $2.971252
≥500 USD $2.803079
≥1000 USD $2.644409
Inventory: 7943
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Vertical, 4 PC Pin
Number of Pins 4
Core Material Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TFC
Size / Dimension 0.669Lx0.433W 17.00mmx11.00mm
Tolerance 50%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Resistance 510mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Depth 11mm
Current Rating 800mA
Voltage - Rated AC 400V
Lead Pitch 8mm
Inductance @ Frequency 3.3mH @ 10kHz
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 510mOhm
Number of Lines 2
Filter Type Power Line
Max DC Current 800mA
Current 800mA
Test Frequency 10kHz
Inductance 3.3 mH

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Height (Max) 0.669 17.00mm
Width 11mm
Length 17mm
Height 17mm
