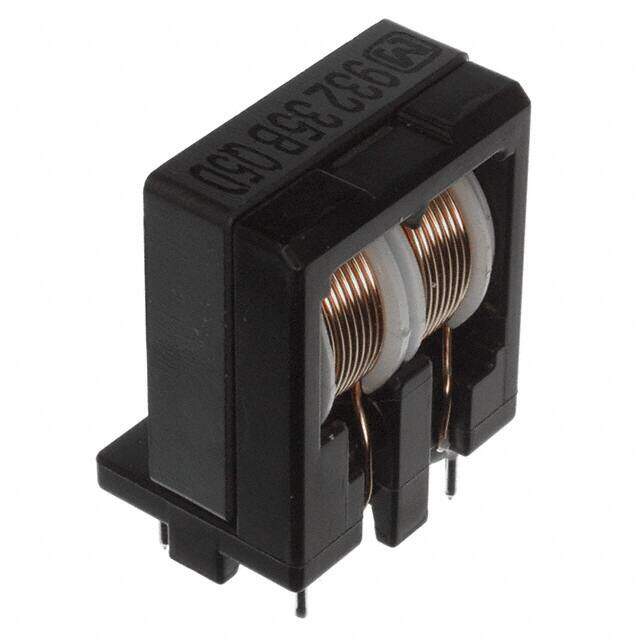

ELF-22V035B
RoHS
/
Package Vertical, 4 PC Pin
Category Filters / Common Mode Chokes
Description
COMMON MODE CHOKE 3.5A 2LN TH
PDF
/
Buying Options
Total Price: USD $5.86
Unit Price: USD $5.864724
≥1 USD $5.864724
≥200 USD $2.340901
≥400 USD $2.262127
≥1000 USD $2.224053
Inventory: 5056
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 38.989mm
Technical
DC Resistance (DCR) (Max) 75mOhm Typ
Number of Lines 2
Filter Type SINGLE PHASE EMI FILTER
Current 3.5A
Inductance 9.3 mH
Reach Compliance Code unknown
Additional Feature INDUCTANCE 9.3 MILLI HENRY
Min Operating Temperature -20°C
Max Operating Temperature 105°C
Terminal Finish Tin/Copper (Sn/Cu)
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
JESD-609 Code e2
Size / Dimension 1.260Lx0.906W 32.00mmx23.00mm
Series V
Published 2005
Packaging Bulk
Physical
Package / Case Vertical, 4 PC Pin
Mounting Type Through Hole
Mount Through Hole
