142212

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)

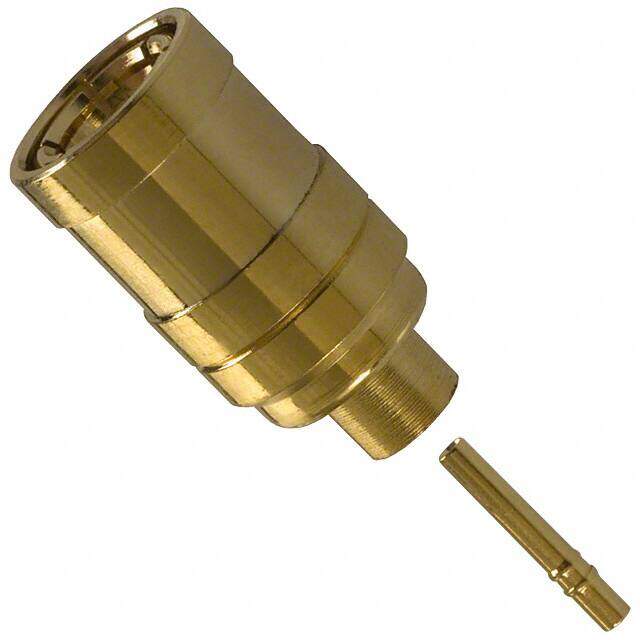

Description SMB Connector Plug, Female Socket 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $7.64
Unit Price: USD $7.64048
≥1 USD $7.64048
≥10 USD $7.208
≥100 USD $6.8
≥500 USD $6.41509
Inventory: 987
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Length 12.5mm

Technical

Shield Termination Solder
Cable Group RG-405 (.085, .086 Semi Rigid)
Body Finish Gold
Insertion Loss 0.3dB
Includes 2 pcs - 1 Connector, 1 Contact
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4GHz
Body Plating Gold
Number of Ports 1
Connector Style SMB
Impedance 50Ohm
Housing Color Gold
Frequency 4GHz
Orientation Straight
Fastening Type Snap-On
Voltage - Rated 335V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2005
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 1.580004g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Package / Case SMB
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass

Supply Chain

Factory Lead Time 9 Weeks
